Samsung 36V 10.4Ah - internal downtube mounted

Suntour XCM HLO with 100mm travel and hydraulic lock out

Reid custom hydroformed alloy frame with DIB and internal wiring and cabling

Quando alloy QR Front Bafang 250W rear hub motor

Electric Mountain Bikes open up the trails to more people like never before. Get more of the fun stuff and stay fresh for your favourite sections on Australia’s best value electric mountain bike - the E-Trail 1.0.
The undeniable benefits of these amazing bikes has driven a surge in popularity. Advances in battery technology have meant faster, smaller, more powerful units; while the motors have gotten smoother and more discrete.
All that aside - as it becomes clear from the first pedal stroke - electric mountain bikes are made for fun.
The E-Trail 1.0 is a versatile cross-country/trail bike that is perfect for all types of off-road riding. Whether you want to explore the country by fire trail or blast some singletrack, the E-Trail will keep you moving.
The E-trail 1.0 electric mountain bike features a frame that is a lightweight double-butted 6061 hydroformed alloy with versatile trail geometry. Internal cabling keeps the wires tucked away and safe. A Suntour XCM 100mm travel suspension fork with hydraulic lock out gives smooth control over broken ground and enough bounce to soak up the hits.
Powering the ebike is a light and unobtrusive Bafang 250 watt electric motor positioned in the rear hub. This keeps the centre of gravity low - for stable handling when descending on fast trails and when navigating technical climbs. The torque of the rear hub electric motor coupled with the Shimano 7 speed drivetrain will give you all the range you need for riding the full hill.
The E-Trail 1 is powered by a high capacity and fast charging Samsung 36 volt 10.4 amp hour battery pack, internally mounted into the downtube of the frame. This elegant design really lets you feel the bike when riding.
Choose your level up to 25km per hour on the handlebar mounted display unit, and power through up to 70 kilometres of assisted riding on a single charge.
Tektro mechanical disc brakes give reliable stopping power and control. These well priced discs perform well in the mud and are easy for riders to maintain.
Running on Alex MD17 double wall alloy rims and Kenda 27.5 x 2.35” tyres, this electric bike is ready to go.
Our range of Electric Bikes all include the industry-leading Reid Warranty: lifetime on frame and rigid forks, 2 years on non-consumable parts, 1 year/5,000 km (whichever comes first) warranty on eBike system components and 2 free services within the first 12 months. We also offer our Online customers a 30 Day Test Ride to guarantee you get a great deal.
Custom hydroformed alloy frame with DIB and internal wiring/cabling for a sleek finish.
Powerful Bafang 250W rear hub drive motor powered by Samsung 10.4AH battery for fast charging performance and up to 70km range on a single charge.
Suntour XCM HLO suspension fork with 100mm travel and hydraulic lock out for comfort and control on the trail and efficiency on the climbs.
Tektro mechanical disc brakes for stopping power and modulation control in the dirt and in the wet.
Shimano M310 7-speed gearing, shifters and derailleur.
Kenda K1153 27.5 x 2.35 tyres.
Lifetime frame warranty, 2 years warranty on parts and two free services within 12 months of purchase to guarantee you get a great deal.
INSTORE / CLICK & COLLECT BIKE ORDERS
Bikes purchased Click & Collect or instore from our Ascot Vale, Dandenong, Sydney, Brisbane, Adelaide or Perth stores are fully assembled by a bike mechanic and ready to ride.
ONLINE BIKE ORDERS
For online home delivery orders, bikes are shipped in a box 85% assembled and require some basic final assembly like turning handlebars and inserting pedals. Click here for our Assembly Video Guides that give instructions on how to do this step-by-step.
Q. WHAT ARE THE BENEFITS OF BAFANG REAR HUB MOTOR?
Rear hub electric bikes offer a more discrete, lighter, and more affordable choice. The major trade off is handling at speed or over broken ground. If you are primarily looking to cruise along roads and river paths on your eBike, this will not be an issue.
Bafang are the largest hub motor manufacturer in the world with a huge presence in the Asian, European and US markets. The Bafang rear hub motor is light and unobtrusive, recharge time is quick and the range is good. Considering how affordable these systems are, a new eBike now makes a lot of sense for more people.
Q. HOW FAST DOES AN EBIKE GO?
Electric bikes in Australia are limited to 250w and will assist you up to 25km/hr - going faster than this is up to the effort of the rider. Any motor providing more power will be classified as a motorbike and must be registered and ridden by a licenced rider.
Q. HOW FAR CAN I TRAVEL ON A FULL CHARGE?
The range you can expect depends on how hard the battery is working. This will be affected by factors like the weight of the rider, how much luggage you’re carrying, tyre pressure, hills/terrain, road condition, wind and the level of assistance or power setting you use.
You can expect the Shimano Steps system to last around 100km on the highest assistance setting even with hills and extra weight (ranges up to 185km under ideal conditions have been reported by Shimano in testing). The Bafang and Ananda electric bike systems will cover up to 70km depending on conditions.
Q. HOW DO I CHARGE AN EBIKE AND HOW LONG WILL IT TAKE?
Simply plug the charger into a standard wall socket at work or when you get home. To charge the Shimano Steps battery from 0% to 80% will take 2 hours, 100% in 4 hours. Most of the time though you’ll just need to top up rather than completely refill. Charging times are similar for the Bafang and Ananda systems.
Q. HOW MUCH DOES IT COST TO CHARGE?
The Shimano Steps system uses a 418Wh battery. At 30c/kWh x 0.418kWh = 12.5c for a full charge. Costs are similar with the Bafang and Ananda systems.
Q. CAN I RIDE IN THE RAIN?
Yes, all of these units are sealed and made for all-conditions riding.
Q. CAN I SWITCH OFF THE ENGINE AND RIDE IT LIKE NORMAL?
Yes. Remove the battery pack and it will feel very much like a normal bike.
Q. WHAT DOES ‘PEDELEC’ MEAN?
The most popular electric bike system in Australia is the pedelec (or pedal assist) system. You ride a pedaled assisted eBike by pedalling as normal, while the electric motor adds power to each pedal stroke - flattening out the hills and getting you up to speed with much less effort.
Q. HOW OFTEN SHOULD I SERVICE MY EBIKE?
We recommend your electric bike is serviced during the first 3 months of ownership as components bed in. Frequency of servicing after that depends on usage and what maintenance you choose to do yourself in terms of caring for the chain and other basic tasks. A regular rider who does not perform any maintenance may benefit from servicing every 6 months. Click here for more information on servicing.

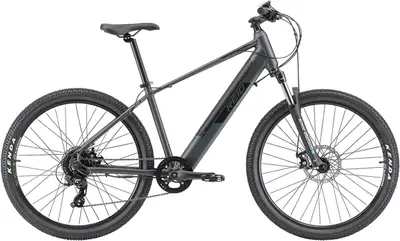

REID E-Trail 1.0 eBike

The maximum weight limit for our adult bikes is 100 KG. This includes the rider weight plus any bags accessories basket contents or backpacks etc.

MSRP	($1,333)
Where to Buy	— $1 At
Category	Crosscountry, E-Bike
Weight	47.7 lbs
	3.2
Frame	Aluminum
	Suntour XCM
Wheels	Aluminum
Wheel Size	27.5″
	Tektro Hydraulic Disc
	Bafang 250W hub-drive

	Altus
Drivetrain	1 × 7
Suspension	Hardtail
Front Travel	100mm
Brand Site	reidcycles.com.au
Summary	The REID E-Trail 1.0 eBike is a 27.5″ aluminum frame hardtail crosscountry e-bike with modest components.

Frame	Reid custom hydroformed alloy frame with DIB and internal wiring and cabling
Fork	Suntour XCM HLO with 100mm travel and hydraulic lock out Travel: 100mm Spring Type: Coil
Bottom Bracket	Neco sealed bearing
Stem	Reid oversize alloy
Handlebar	Reid alloy oversize flat bar
Saddle	Reid MTB
Seatpost	Zoom 27.2 x 350mm micro adjust Type: Rigid
Pedals	Alloy platform
Grips	Ergonomic rubber grip

Rear Derailleur	Shimano M310 7 speed
Crank	Prowheel Pioneer 38T with alloy guard
Shifters	Shimano M310 7 speed
Cassette	Shimano 7 speed 14-28T freewheel
Chain	KMC
Brakes	Tektro mechanical disc brakes Type: Tektro Hydraulic Disc
Brake Levers	Alloy

Rims	Alex MD17 disc specific
Front Hub	Quando alloy QR Front Bafang 250W rear hub motor
Rear Hub	Quando alloy QR Front Bafang 250W rear hub motor
Tires	Kenda K1153 27.5 x 2.35

Motor	Bafang SWZ02 250W rear hub motor
Battery	Samsung 36V 10.4Ah - internal downtube mounted
Display	LCD multi-function display
