Avid BB5 mechanical disc with Avid G2CS 160mm rotors

Redline steel 700c disc fork, IS standard, 1 1/8 steerer

Redline full Chromoly road, forged dropouts with IS standard disc mounts

XLC alloy drop bar, 31.8mm with 125mm drop

Alex Race 24, double wall 32H, Pin joint, Alloy QR front and rear hubs

XLC alloy with 4 bolt clamp 31.8mm, +/- 7 degree

Commuter, touring, gravel fondo, adventure rides, all of this is possible on the Metro Classic. Classic, because it retains a 4130 double butted chromoly frame and fork and a great ride quality that is timeless. The combination of classic materials and look, paired with disc brakes, STI shifters and triple crankset make this a very versatile bicycle.

MSRP
Where to Buy	— $1 At
Category	Endurance
	2.3
Frame	Steel
	Steel
Wheels	Aluminum
Wheel Size	700c
	Avid Mechanical Disc


	Tiagra
Drivetrain
Brand Site

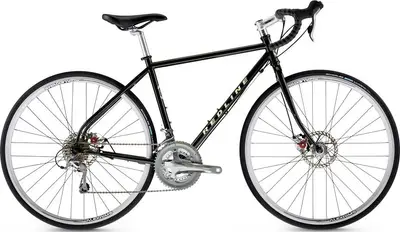

Summary	The Redline Metro Classic is a steel frame endurance bike with mid-range components and avid mechanical disc brakes.

Frame	Redline full Chromoly road, forged dropouts with IS standard disc mounts BB Standard: BSA, 68mm, Threaded
Fork	Redline steel 700c disc fork, IS standard, 1 1/8 steerer
Bottom Bracket	Square taper 68mm, 116L
Headset	1 1/8" Conventional threadless, Steel
Stem	XLC alloy with 4 bolt clamp 31.8mm, +/- 7 degree
Handlebar	XLC alloy drop bar, 31.8mm with 125mm drop
Saddle	Redline rivet, steel rail
Seatpost	XLC alloy 27.2mm X 350mm length Type: Rigid

Rear Derailleur	Shimano Tiagra 10spd
Front Derailleur	Shimano Tiagra 31.8mm with adapter
Crank	Shimano Tiagra triple
Shifters	Shimano Tiagra 10spd
Cassette	Shimano Tiagra 10spd, 12-28
Chain	KMC X10
Brakes	Avid BB5 mechanical disc with Avid G2CS 160mm rotors Type: Avid Mechanical Disc

Rims	Alex Race 24, double wall 32H, Pin joint, Alloy QR front and rear hubs
Tires	Schwalbe Lugano
