    DS12014 Redline
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    3.3
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Promax Mechanical Disc
    		X3, Altus
    Drivetrain
    		3 × 8
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site
    Summary

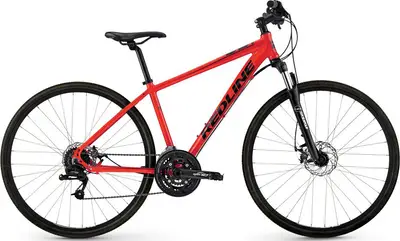

    		The Redline DS1 is a 29″ aluminum frame hardtail crosscountry bike with mid-range components and promax mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    DS1
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    38 mph

    DS1

    Highest gear

    (descending)

    Geometry
    Specs
    DS12014 Redline
    Frame

    6061/T6 Aluminum Dual Sport with hydroformed top and down tube and forged drop-outs w/ replaceable derailleur hanger

    Fork

    SR Suntour NEX with 63mm travel and mechanical lockout

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    Square taper 68mm, 116

    Headset

    Integrated 1 1/8" press in cups, zero stack style

    Stem

    XLC alloy 31.8mm, 10d rise

    Handlebar

    XLC steel riser 31.8mm X 640mm width, 30mm rise

    Saddle

    XLC standard padding, steel rail

    Seatpost

    XLC alloy 27.2mm X 350mm width

    Type: Rigid

    Grips

    Dual density 122mm width

    Groupset
    Rear Derailleur

    SRAM X3 medium cage

    Front Derailleur

    Shimano FD-M191, 31.8 Clamp with adapter

    Crank

    SR Suntour XCT 48/38/28T with guard

    Shifters

    SRAM X4/X3, Promax levers

    Cassette

    Shimano CS-HG31 8spd, 11-30t

    Chain

    KMC Z72

    Brakes

    Promax DSK-720, mechanical disc, 160mm rotor

    Type: Promax Mechanical Disc

    Wheels
    Rims

    Alex DM-18 double wall 700c, pin joint, Formula QR hubs

    Tires

    Kenda 700 x 35
