    D6202014 Redline
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    4.1
    Frame
    		Aluminum
    		RockShox 30 Silver TK
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Avid Hydraulic Disc
    		Deore
    Drivetrain
    		2 × 10
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site
    Summary

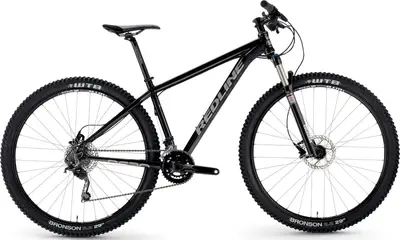

    		The Redline D620 is a 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    D620
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    D620

    Highest gear

    (descending)

    Geometry
    Specs
    D6202014 Redline
    Frame

    6061-T6 Aluminum with Butted Hydroformed Top and Downtube and forged drop-outs with replaceable derailleur hanger

    Fork

    RockShox 30 Gold TK 100mm 29"

    Travel: 100mm

    Bottom Bracket

    Shimano

    Headset

    1 1/8" FSA Orbit Z

    Stem

    Kore threadless with 4 bolt clamp OD31.8mm

    Handlebar

    Kore XCD flat, OD31.8mm X W710mm

    Saddle

    Kore Fazer SL

    Seatpost

    Kore XCD, Alloy twin bolt - 350 X 27.2mm

    Type: Rigid

    Grips

    Redline Flight flangeless lock-on

    Groupset
    Rear Derailleur

    Shimano Deore 10 speed Shadow Plus, GS

    Front Derailleur

    Shimano Deore

    Crank

    Shimano Deore 38X26t, 10 speed

    Shifters

    Shimano Deore 2X10 speed

    Cassette

    Shimano HG62-10, 11-34t

    Chain

    KMC X10

    Brakes

    Avid DB3 hydrolic disc with 160mm rotors

    Type: Avid Hydraulic Disc

    Wheels
    Rims

    WTB SX-19 29" - 32H, Formula sealed bearing hubs

    Tires

    WTB Bronson comp 29 x 2.1", wire bead
