    RENDER 10.0 HD 8002026 Radon
    Recommended
    MSRP
    ($7,980)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		51.6 lbs
    8.6
    Frame
    		Carbon
    		RockShox Lyrik Ultimate
    		RockShox Super Deluxe Ultimate
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		SRAM Maven Ultimate Hydraulic Disc
    		Bosch 600W 85Nm mid-drive
    		Bosch 800Wh
    		X0 Eagle Transmission, Eagle AXS
    Drivetrain
    		1 × 12 Electronic
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		140mm
    Brand Site

    radon-bikes.de

    Summary

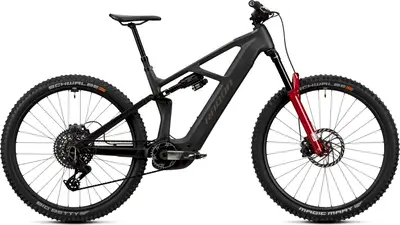

    		The Radon RENDER 10.0 HD 800 is a 29″ carbon frame full suspension trail e-bike with ultra high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    RENDER 10.0 HD 800

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    RENDER 10.0 HD 8002026 Radon
    Frame

    RENDER 800; Material: Carbon main frame / Aluminium rear triangle, Max. width tire: 2.6", Powertube battery 800Wh horizontal, Hanger: UDH

    Hanger Standard: UDH

    Color: Ud-Carbon / Brilliantash

    Fork

    Rock Shox Lyrik Ultimate, Charger 3.2 RC2, Boost; Rake: 44mm

    Travel: 160mm

    Spring Type: Air

    Shock

    Rock Shox Super Deluxe Ultimate; Size: 210 x 55mm, Bushing Size: body: 8 x 30mm, shaft: DU-Bushing 12.7mm

    Travel: 140mm

    Headset

    Acros Block-Lock with ICR, ZS56/ZS56; Internal cable routing

    Stem

    Race Face Turbine R, Ø35mm; M: 40mm, L: 50mm, XL: 60mm

    Handlebar

    Race Face Era, 35 x 780mm, 40mm rise

    Saddle

    Ergon SM10 Enduro

    Seatpost

    SDG Tellis V2, Ø31.6mm; M: 130-150mm travel, L: 130-150mm travel, XL: 180-200mm travel

    Type: Dropper

    Pedals

    ACID FLAT C3-ZP

    Grips

    Ergon GDH

    Groupset
    Rear Derailleur

    SRAM X0 Eagle Transmission, 12-speed

    Crank

    Race Face Era 165mm, SRAM T-Type Eagle Transmission 34T; chainline: 55mm

    Shifters

    SRAM AXS POD Ultimate Controller

    Cassette

    SRAM GX Eagle Transmission CS-XS-1275,10-52

    Chain

    SRAM X0 Eagle Transmission

    Chain Guide

    Reverse Components Flip-Guide, direct mount

    Brakes

    SRAM Maven Ultimate

    Type: SRAM Maven Ultimate Hydraulic Disc

    Wheels
    Rims

    NEWMEN Beskar 30 base/strong, 110/148mm; Inner width: 30mm, Tubeless ready: ✔, Tubeless valves: not included, Tubeless tape: 33mm, not included, Tubeless milk: not included

    Tires

    Front: Schwalbe Magic Mary, Addix-Soft, Super Trail, TLE, 29" x 2.4", Rear: Schwalbe Big Betty, Addix-Soft, Super Gravity, TLE, 29" x 2.4"

    Electric Components
    Motor

    Bosch Performance Line CX Gen5 Smart System

    Battery

    Bosch Powertube 800Wh; Bosch Power More 250: compatible ✔

    Display

    Bosch Kiox 400C / Mini Remote

    Charger

    Bosch Charger 4A
