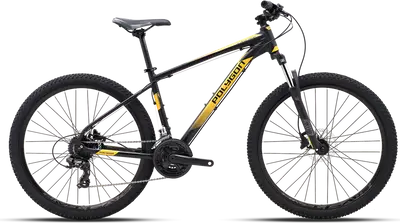

    CASCADE 42023 Polygon
    Recommended
    MSRP
    $499
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    Weight
    		33.3 lbs
    3.2
    Frame
    		Aluminum
    		Suntour XCE
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Hydraulic Disc
    		Tourney, Altus
    Drivetrain
    		3 × 8
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    polygonbikes.com

    Summary
    		The Polygon CASCADE 4 is a 27.5″ aluminum frame hardtail crosscountry bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    CASCADE 4
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    CASCADE 4

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CASCADE 42023 Polygon
    Frame

    aluminum

    Color: Deep Black

    Fork

    SUNTOUR XCE28 100mm TRAVEL

    Travel: 100mm

    Spring Type: Coil

    Bottom Bracket

    CARTRIDGE BEARING W/ CAGED BEARING & 122.5mm SQUARE AXLE

    Headset

    ZERO STACK (ZS) THREADLESS, ZS 44/28.6 | 44/30

    Stem

    Entity OE, Alloy, 45mm

    Handlebar

    STEEL, W: 680MM, B: 31.8MM, R/D: 40MM

    Saddle

    MTB SADDLE, STEEL ø7mm

    Seatpost

    ENTITY, 27.2x350mm

    Type: Rigid

    Pedals

    PP CAGE W/ REFLECTOR

    Groupset
    Rear Derailleur

    SHIMANO RD-TX800 8-SPEED SGS DIRECT ATTACH

    Front Derailleur

    Shimano Altus FD-M313

    Crank

    PROWHEEL STEEL CRANK 42x34x24T

    Shifters

    SHIMANO SL-M315 ALTUS 3x8 SPEED RAPID FIRE

    Cassette

    SHIMANO CS-HG200 8-SPEED 12-32T CASSETTE SPROCKET

    Chain

    KMC Z-8.3

    Brakes

    CLARKS CLOUT, HYDRAULIC DISC BRAKE

    Type: Hydraulic Disc

    Brake Levers

    INCLUDE WITH BRAKE SET

    Wheels
    Rims

    ALLOY DOUBLE WALL AV H: 20 584x20 32H FOR TIRE 584-28/62 DISC

    Spokes

    STEEL 14G NDS:270 & DS:272 W/ UCP BRASS

    Front Hub

    ALLOY DISC BRAKE QR9x100mm 32H 6B

    Rear Hub

    ALLOY DISC BRAKE QR9x135mm 32H 6B FOR CASSETE SPROCKET

    Tires

    DELI 27.5"x2.1"

    Disc Rotors

    160mm 6-BOLTS
