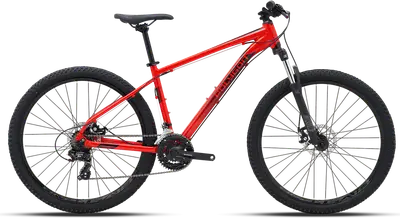

    CASCADE 32022 Polygon
    Recommended
    MSRP
    $559
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    Weight
    		33.7 lbs
    2.8
    Frame
    		Aluminum
    		Suntour XCE
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Tektro Mechanical Disc
    		Tourney
    Drivetrain
    		3 × 7
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    bikesonline.com

    Summary
    		The Polygon CASCADE 3 is a 27.5″ aluminum frame hardtail crosscountry bike with mid-range components and tektro mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    CASCADE 3
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    CASCADE 3

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CASCADE 32022 Polygon
    Frame

    aluminum

    Color: Indigo Blue

    Fork

    SUNTOUR XCE28 100mm TRAVEL

    Travel: 100mm

    Spring Type: Coil

    Shock

    -

    Bottom Bracket

    CARTRIDGE BEARING W/ CAGED BEARING & 119mm SQUARE AXLE

    Headset

    ZERO STACK (ZS) THREADLESS, ZS 44/28.6 | 44/30

    Stem

    ENTITY OE, ALLOY, E: 45MM, B: 31.8MM, R/D: 0

    Handlebar

    STEEL, W: 680MM, B: 31.8MM, R/D: 40MM

    Saddle

    MTB SADDLE, STEEL ø7mm

    Seatpost

    ENTITY, 27.2x350mm

    Type: Rigid

    Pedals

    PP CAGE W/ REFLECTOR

    Groupset
    Rear Derailleur

    SHIMANO RD-TY300 6/7-SPEED DIRECT ATTACH

    Front Derailleur

    Shimano Tourney FD-TY300

    Crank

    STEEL CRANK 42x34x24T

    Shifters

    SHIMANO ST-EF41, 3x7 SPEED TRIGGER

    Cassette

    SHIMANO MF-TZ500 7-SPEED 14-28T FREEWHEEL

    Chain

    KMC HV-500

    Brakes

    TEKTRO MD-M280

    Type: Tektro Mechanical Disc

    Brake Levers

    SHIMANO ST-EF41

    Wheels
    Rims

    ALLOY DOUBLE WALL AV H: 20 584x20 32H FOR TIRE 584-28/62 DISC

    Spokes

    STEEL 14G NDS:270 & DS:272 W/ UCP BRASS

    Front Hub

    ALLOY DISC BRAKE QR9x100mm 32H 6B

    Rear Hub

    ALLOY DISC BRAKE QR9x135mm 32H 6B FOR FREEWHEEL

    Tires

    DELI 27.5"x2.1" 584x54

    Disc Rotors

    TEKTRO TR160-24 160mm 6-BOLTS
