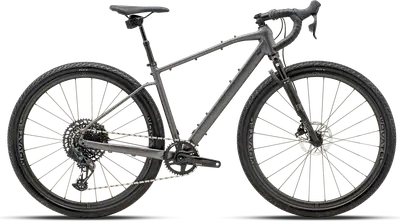

    BEND V9X2024 Polygon
    Recommended
    MSRP
    $3,799
    Where to Buy
    —
    $1

    At

    Category
    		Gravel
    Weight
    		1.6 lbs (frame)
    7.0
    Frame
    		Aluminum
    		Fox Float 32
    Wheels
    		Carbon
    Wheel Size
    		700c
    		SRAM Rival Hydraulic Disc
    		GX Eagle AXS, Rival AXS
    Drivetrain
    		1 × 12 Electronic
    Suspension
    		Hardtail
    Front Travel
    		40mm
    Brand Site

    polygonbikes.com

    Summary
    		The Polygon BEND V9X is an aluminum frame gravel bike with high-end components and sram rival hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    BEND V9X
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    35 mph

    BEND V9X

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    BEND V9X2024 Polygon
    Frame

    aluminum

    BB Standard: BSA, 68mm, Threaded

    Color: Charcoal

    Fork

    FOX TC 32 40mm TRAVEL

    Travel: 40mm

    Spring Type: Air

    Bottom Bracket

    SRAM DUB BSA 68mm

    Headset

    FSA NO. 42 W/ SEALED BEARING, IS 42/28.6 | IS 52/40

    Stem

    Entity Expert, 70mm Length, 31.8mm Clamp, 7-Degree

    Handlebar

    ALLOY FLARE 16degree, W: 420mm (S, M) / 440mm (L, XL), BB: 31,8mm, R/D: 125mm. B/R: 77mm

    Saddle

    FLUX2, CR-MO ø 7mm

    Seatpost

    REVERB AXS XPLR T: 75mm, DxL: 27,2 x 400mm

    Type: Dropper

    Pedals

    ONE PIECE PP FLAT

    Groupset
    Rear Derailleur

    SRAM GX EAGLE AXS 12-SPEED

    Crank

    SRAM RIVAL 1 WIDE 40T, MAX: 42T

    Shifters

    SRAM RIVAL ETAP AXS 12-SPEED BRIFTER

    Cassette

    SRAM XG-1275 12 SPEED 10-52T

    Chain

    SRAM GX EAGLE

    Brakes

    SRAM RIVAL HYDRAULIC DISC

    Type: SRAM Rival Hydraulic Disc

    Brake Levers

    SRAM RIVAL

    Wheels
    Rims

    CARBON FV H: 28 622x24 24H FOR TYRE 622-35/68 TLR

    Spokes

    F: STAINLESS DOUBLE BUTTED 14G NDS:282mm DS:284mm W/ NIPPLE BRASS / R: STAINLESS DOUBLE BUTTED 14G NDS:284mm DS:282mm W/ NIPPLE BRASS

    Front Hub

    NOVATEC D791 12x100mm 24H CL

    Rear Hub

    NOVATEC D792 12x142mm 24H CL FOR XDR

    Tires

    VEE RAIL 700x50C 622x50 TLR

    Disc Rotors

    SRAM PACELINE 160mm CL
