 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Touring | |
Weight | 24.7 lbs | |
| Aluminum | ||
Fork | Aluminum | |
Wheels | Aluminum | |
Wheel Size | 650b | |
Brakes | Mechanical Disc | |
Groupset | Sora | |
Drivetrain | 2 × 9 | |
Brand Site | ||

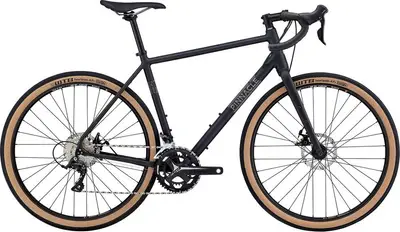

Summary | The Pinnacle Pyrolite 1 is an aluminum frame touring bike with mid-range components and mechanical disc brakes. | |
Frame | 6061-T6 heat treated alloy, w/double butted top tube, triple butted down tube, smooth welds & flat mounts BB Standard: BSA, 68mm, Threaded | |
|---|---|---|
Fork | Aluminium blade and tapered steerer w/flat mount & 15mm thru axle | |
Bottom Bracket | FSA BB-4000 19mm BSA threaded | |
Headset | FSA Orbit C-40 ACB tapered | |
Stem | Pinnacle alloy road, +/- 7 degree, S/M - 80mm, L - 90mm, XL - 100mm | |
Handlebar | Pinnacle 6061 alloy adventure road bar, 130mm drop, 8 degree flare, Width S/M - 420mm, L/XL - 440mm | |
Saddle | Pinnacle Race Mens | |
Seatpost | Pinnacle aluminium 350mm x 27.2 | |
Pedals | Not included |
Rear Derailleur | Shimano Sora R3000 9 speed | |
|---|---|---|
Front Derailleur | Shimano Sora R3000 31.8mm band on | |
Shifters | Shimano Sora R3000 | |
Cassette | Shimano HG400 9 speed 11 - 32T | |
Chain | KMC X9 | |
Brakes | Tektro Spyre mechanical discs w/ 160mm Rotors |
Rims | WTB ST i23 TCS 27.5" 32H, tubeless ready | |
|---|---|---|
Front Hub | Aluminium, loose ball, 15mm | |
Rear Hub | Aluminium, 2 sealed bearing, QR | |
Tires | WTB Horizon Comp 650 x 47c 27tpi w/tan sidewall |
