MSRP | ($1,476) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Hybrid, E-Bike | |
Weight | 46.3 lbs | |
Frame | Aluminum | |
| Carbon | ||
Wheels | Aluminum | |
Wheel Size | 650b | |
| Hydraulic Disc | ||
| Bafang 45Nm hub-drive | ||
| 374Wh | ||
| Altus | ||
Drivetrain | ||
Brand Site | ||

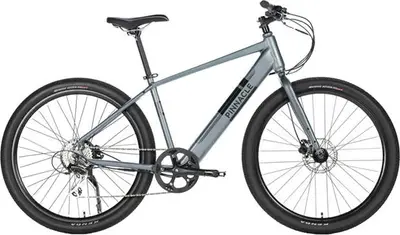

Summary | The Pinnacle Mercury is a 650b aluminum frame hybrid e-bike with modest components and hydraulic disc brakes. | |
Ask 99 Spokes
Frame | 6061-T6 heat-treated aluminium with integrated battery housing. 135 x 10mm rear axle, IS disc mounts, 44mm ID headtube for 1 1/8" semi-integrated headset and 68mm BSA threaded BB shell BB Standard: BSA, 68mm, Threaded | |
|---|---|---|
Fork | Carbon steel for 100 x 9mm QR axle, 1 1/8" steerer tube, 415mm length / 50mm offset | |
Bottom Bracket | BSA, 68mm, threaded | |
Stem | 3D forged 4-bolt 31.8mm MTB stem. Length closed frame model 80mm, open frame model 60mm. | |
Handlebar | 32mm rise MTB bar, 31.8mm size. Width S: 620; M&L: 660mm | |
Saddle | Velo memory foam | |
Seatpost | Twin bolt micro adjust, 27.2mm diameter, 350mm Type: Rigid | |
Pedals | VP E527, resin body w/reflectors | |
Grips | Velo Dual-Density Kraton rubber |
Shifters | Shimano Altus EZ shifter SL-M310 | |
|---|---|---|
Cassette | Sunrace CS-M66 11-34T | |
Chain | KMC Z72 | |
Brakes | Hydraulic Mountain Bike disc brakes for consistent stopping power and control in any situation. Type: Hydraulic Disc |
Rims | DA16 aluminium double wall, 20mm internal width | |
|---|---|---|
Tires | High-volume 2.2" wide tyres and 27.5 MTB format rims float over rougher roads and carry the additional weight of the battery and motor more smoothly than thin tyres, as well as increasing efficiency when used at the correct pressures for longer range from the battery life. |
Motor | Bafang G020 hub motor, 45Nm torque | |
|---|---|---|
Battery | KGEB 374W/h |
Racks | 21kg |
|---|
