Carbon blade, straight 1-1/8 alloy steerer w/ mudguard mounts

6061-T6 heat treated aluminium w/ double-butted tubes

Pinnacle 6061 alloy 125mm drop, 80mm reach, width; S/M - 420mm, L/XL- 440mm

Pinnacle alloy, +/- 3 degree, S/M - 90mm, L/XL - 105mm

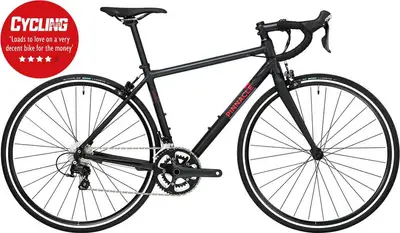

About the Pinnacle Laterite 3Introducing the Pinnacle Laterite. Features and details that have given the Pinnacle Dolomite its coveted and award winning name can be found all over the Laterite. The design, which is ideal for the UK conditions see's all the cabling hidden in the frame out of harm’s way. A threaded bottom bracket means easy maintenance and mudguard fittings mean dry and clean kit all year round. Combined with performance enhancing features including a carbon bladed fork and low overall weight which the Laterite punches well above. Comfort is not forgotten with an ergonomic handlebar shape, thick comfort bar tape and geometry that is also borrowed from its sibling to give a balanced riding position, somewhere between out and out race and up right sportive.
Looking for some performance but on a budget? Perhaps your first introduction to road bikes, an upgrade, or just a winter bike for those chilly mornings? Look no further than the Laterite 3; at under 10kg it has it all with a stiff 24mm axle chainset and an excellent Shimano 105 11 speed groupset. High quality rubber Schwalbe tyres will all help get you down the road pretty quickly.Customer ReviewSuper gear set for the price of the bike ★ ★ ★ ★ ★ Super value for money. Excellent gear set for the price of the bike. It's got a nice smooth ride with the carbon forks reducing road vibration. The seat is a little hard but bearable. I recommend this bike to anyone wanting to get back or into road cycling.Key Features6061-T6 heat treated Aluminium Frame for stiff but light constuction allows you to convert more of your power into speedCarbon Fork is engineered to flex to absorb shock and vibrationShimano 105 22 Speed Drivetrain for precise gear changes and making it easier to ride up steep hillsTektro R315 Caliper Brakes for controlled stopping in all conditionsSchwalbe Lugano 700 x 25c Tyres for the fastest speed on the tarmac About the BrandPinnacle is a UK bike brand whose mission is to make better bikes available for all riders and for 2020 we’re offering our most exciting line up to date. We make drop-bar bikes with fatter tyres that can go further than the traditional road bike, mountain bikes that are more engaging to ride on difficult terrain and city bikes that are truly practical for everyday city use. Our fitness bikes are more comfortable than you might expect and our leisure bikes are simply wonderfully leisurely and easy to ride. Even our children’s bikes draw on both our own memories of childhood cycling and our experience as parents. We hope you’ll find the perfect bike for you within our range, whether you’re looking for a women’s road bike, a flat bar road bike or even an electric road bike.Why buy from Evans Cycles? Buy a road bike from us and get the following included.Free RIDE IT entry - With any bike purchase we provide a complimentary pass to any of our RIDEIT events located across the country.Free 6-week service - All road bikes for sale and bought from Evans Cycles can have a free 6-week service with one of our professional mechanics. Ideal for making sure everything is working as expected.Right Bike Guarantee - Not 100% happy with your new ride? We offer 30-day exchange on any bike, even if you’ve ridden it. No questions asked. Bike SizingChoosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.Hybrid Bike Size GuideGeometry ChartFrame SizeSMLXLHeight Range (Feet-Inches)5.4-5.75.7-5.105.10-6.16.1-6.41 Effec Top Tube (mm)5455605755902 Seat Tube Length (mm)4705005305603 Headtube Length (mm)1401601802004 BB Drop (mm)707070705 Chainstay Length (mm)4154154154156 Front Centre (mm)5946056206357 Seat Angle (°)737373738 Head Angle (°)727272729 Fork Length (mm)37737737737710 Fork Offset (°)5050505011 Reach (mm)37738639540812 Stack (mm)54856959859913 Standover (mm)746771797821Road Bike Buying Guide

MSRP
Where to Buy	— $1 At
Category	Race
Weight	21.2 lbs
	3.3
Frame	Aluminum
	Carbon
Wheels	Aluminum
Wheel Size	700c
	Tektro Rim


	105
Drivetrain	2 × 11
Brand Site	evanscycles.com
Summary	The Pinnacle Laterite 3 is an aluminum frame women’s race bike with upper mid-range components and tektro rim brakes.

Frame	6061-T6 heat treated aluminium w/ double-butted tubes BB Standard: BSA, 68mm, Threaded
Fork	Carbon blade, straight 1-1/8 alloy steerer w/ mudguard mounts
Bottom Bracket	Prowheel BB-68 external threaded
Headset	FSA No.10, internal 1-1/8
Stem	Pinnacle alloy, +/- 3 degree, S/M - 90mm, L/XL - 105mm
Handlebar	Pinnacle 6061 alloy 125mm drop, 80mm reach, width; S/M - 420mm, L/XL- 440mm
Saddle	Pinnacle Mens
Seatpost	Pinnacle aluminium 350mm x 27.2 Type: Rigid
Pedals	Supplied

Rear Derailleur	Shimano 105 5800 11 speed
Front Derailleur	Shimano 105 5800 31.8mm band on
Shifters	Shimano 105 5800
Cassette	Shimano 105 5800 11-28T
Chain	KMC X11
Brakes	Tektro R315 dual pivot, 57mm drop Type: Tektro Rim

Rims	Alloy double wall 700c, 32H
Front Hub	Loose ball bearing 32H QR
Rear Hub	Loose ball bearing 32H QR
Tires	Schwalbe Lugano 700x25c, K-Guard
