 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Weight | 30.4 lbs | |
| Aluminum | ||
Fork | RockShox Recon Silver RL | |
Wheels | Aluminum | |
| 27.5″ | ||
Brakes | Hydraulic Disc | |
Groupset | Alivio | |
Drivetrain | 2 × 9 | |
Suspension | Hardtail | |
Front Travel | 120mm | |
Brand Site | ||

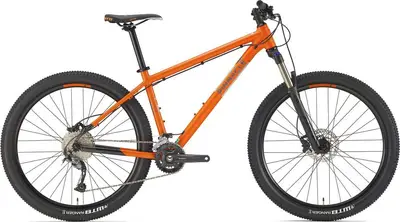

Summary | The Pinnacle Kapur 3 is a 27.5″ aluminum frame hardtail trail bike with mid-range components. | |
Frame | 6061-T6 heat treated alloy, w/double and triple butted tubes. Top tube cable guide routing with guide for external dropper post routing BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Rockshox Recon RL 27.5 120mm 15 x 100mm | |
Bottom Bracket | Promax external threaded | |
Headset | Semi intergrated, Tapered 1 1/8 to 1 1/5 Sealed Bearing | |
Stem | Pinnacle MTB 31.8mm, +/- 3 degree, 45mm | |
Handlebar | Pinnacle MTB 6061 DB alloy, 6 degree back sweep, 12mm rise, S/M/L/XL - 760mm XS - 700mm | |
Saddle | WTB Volt 142mm | |
Seatpost | Pinnacle aluminium 350mm x 27.2mm with Shim. seat tube inner diameter is 30.9mm to accept dropper post with shim removed | |
Pedals | Supplied | |
Grips | WTB Waffle Lock on |
Rear Derailleur | Shimano Alivio M4000 9 speed | |
|---|---|---|
Front Derailleur | Shimano Alivio M4020 Band On | |
Shifters | Shimano Altus M4000 9 Speed | |
Cassette | Shimano HG200 9 speed 11-34T | |
Chain | KMX X9 | |
Brakes | Shimano MT400 hydraulic discs w/Shimano RT26 Rotor 160mm |
Rims | Double wall aluminium 32H, 24mm internal width | |
|---|---|---|
Front Hub | Loose ball bearing, 32H, 15mm | |
Rear Hub | Loose ball bearing, 32H, QR | |
Tires | WTB Ranger 27.5 x 2.25 27tpi |
