 | Recommended |
|---|
MSRP | ($652) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
Weight | 29.6 lbs | |
| Aluminum | ||
Fork | Suntour XCR | |
Wheels | Aluminum | |
| 27.5″ | ||
Brakes | Hydraulic Disc | |
Groupset | Altus | |
Drivetrain | 3 × 9 | |
Brand Site | ||

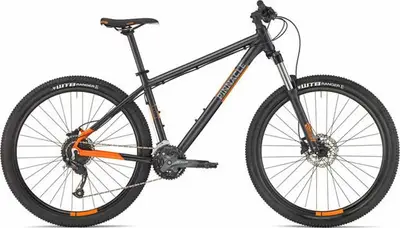

Summary | The Pinnacle Kapur 2 is a 27.5″ aluminum frame hardtail crosscountry bike with mid-range components. | |
Frame | 6061-T6 heat treated alloy, w/double and triple butted tubes. Top tube cable guide routing with guide for external dropper post routing BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Suntour XCR32 LO-R 27.5 120mm QR | |
Bottom Bracket | Sealed bearing, square taper, threaded | |
Headset | Semi Intergrated 1 1/8 caged bearing | |
Stem | Pinnacle MTB 31.8mm, +/- 3 degree, 45mm | |
Handlebar | Pinnacle MTB 6061 DB alloy, 6 degree back sweep, 12mm rise, S/M/L/XL - 760mm XS - 700mm | |
Saddle | WTB Volt 142mm | |
Seatpost | Pinnacle aluminium 350mm x 27.2mm with Shim. seat tube inner diameter is 30.9mm to accept dropper post with shim removed | |
Pedals | Supplied | |
Grips | WTB Waffle Lock on |
Rear Derailleur | Shimano Altus M2000 9 speed | |
|---|---|---|
Front Derailleur | Shimano Altus M2000 Band On 31.8mm | |
Shifters | Shimano Altus M2000 9 speed | |
Cassette | Shimano HG200 9 speed 11-34T | |
Chain | KMX X9 | |
Brakes | Shimano M315 hydraulic discs w/Shimano RT10 centrelock rotors 160mm |
Rims | Double wall aluminium 32H, 24mm internal width | |
|---|---|---|
Front Hub | Shimano TX505 32H Centrelock QR | |
Rear Hub | Shimano TX505 32H Centrelock QR | |
Tires | WTB Ranger 27.5 x 2.25 27tpi |
Racks | 13.44kg (X-Large) |
|---|
