    e-five2022 Patrol
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    6.8
    Frame
    		Carbon
    		Fox Performance Float 36
    		Fox Float X Performance
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Shimano 500W 85Nm mid-drive
    		Shimano 630Wh
    		SLX
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		150mm
    Rear Travel
    		130mm
    Brand Site

    patrolmountain.com

    Summary

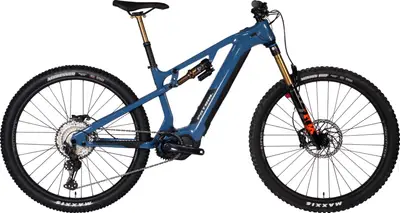

    		The Patrol e-five is a 29″ carbon frame full suspension trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    e-five
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    24 mph

    e-five

    Highest gear

    (descending)

    Geometry
    Specs
    e-five2022 Patrol
    Frame

    PATROL carbon front, alloy rear. Electric trail, 12×148 mm, 130mm travel. Oversize 1.8in headtube.

    Fork

    FOX 36 Performance, 150mm travel

    Travel: 150mm

    Spring Type: Air

    Shock

    FOX Float X Performance

    Travel: 130mm

    Seatpost

    KS KSP900-i, 31.6mm, 125mm, remote

    Type: Dropper

    Groupset
    Rear Derailleur

    SHIMANO SLX M7100, 12s

    Crank

    SHIMANO FC-EM600, SM-CRE80-12-SB, 34t

    Shifters

    SHIMANO SLX M7100-R

    Cassette

    SHIMANO SLX M7100, 12s, 12-51t

    Brakes

    SHIMANO MT420

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    SUNringlé Düroc SD37 rims with SHIMANO SLX hubs, Superboost rear, Boost front.

    Tires

    VEE Tire Co. Attack HPL, 29×2.50

    Electric Components
    Motor

    SHIMANO Steps DU-EP800

    Battery

    SHIMANO BT-E8036, 630Wh
