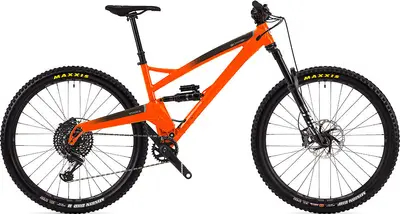

    Stage 5 RS2020 Orange
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    5.9
    Frame
    		Aluminum
    		RockShox Pike Ultimate
    		RockShox Super Deluxe Ultimate
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano XT Mechanical Disc
    		Truvativ Descendant Carbon, X01 Eagle
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		-
    Brand Site

    orangebikes.co.uk

    Summary
    		The Orange Stage 5 RS is a 29″ aluminum frame full suspension trail bike with high-end components and shimano xt mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Stage 5 RS
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    Stage 5 RS

    Highest gear

    (descending)

    Geometry
    Specs
    Stage 5 RS2020 Orange
    Frame

    Aluminum

    Fork

    RockShox Pike Ultimate, 42mm offset, 110x15mm Boost thru-axle, Option: FOX 36 FLOAT Factory

    Travel: 140mm

    Spring Type: Air

    Shock

    RockShox Super Deluxe Ultimate, 210mm x 50mm, Option: FOX DPX2 FLOAT Factory

    Bottom Bracket

    SRAM DUB, 73mm

    Headset

    Cane Creek, ZS49/28.6 upper, EC49/40 lower, for tapered steerer, Option: Hope Tech

    Stem

    Hope, 35mm bore, 35mm length, Option: Burgtec, 35mm

    Handlebar

    Renthal Fatbar, 800mm width, 35mm bore, Option: Renthal Carbon Fatbar, 800mm width

    Saddle

    SDG Radar, steel rails, black/black

    Seatpost

    FOX Transfer Performance Elite dropper, 150mm drop, Option: FOX Transfer Factory dropper, 150mm or 170mm drop

    Type: Dropper

    Pedals

    None, Option: Burgtec MK4 Composite

    Grips

    Strange 130, single lock-on, black

    Groupset
    Rear Derailleur

    SRAM X01 Eagle, 12-speed

    Front Derailleur

    N/A

    Crank

    Truvativ Descendant Carbon Eagle DUB

    Shifters

    SRAM GX Eagle, 12-speed

    Cassette

    SRAM Eagle XG1275, 12-speed, 10-50 tooth

    Chain

    SRAM GX Eagle, 12-speed

    Chain Guide

    None, Option: MRP 1x

    Brakes

    Shimano XT Trail, 203mm front rotor, 180mm rear rotor, Option: Hope Tech 3 E4, 203mm front rotor, 180mm rear rotor

    Type: Shimano XT Mechanical Disc

    Brake Levers

    Shimano XT Trail, Option: Hope Tech 3 E4

    Wheels
    Rims

    e*thirteen TRS, 30mm internal width, Option: Stan's NoTubes Flow MK3

    Front Hub

    Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear

    Rear Hub

    Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear

    Tires

    Front: Maxxis Minion DHF, 29" x 2.5" WT, Rear: Maxxis Minion DHR II, 29" x 2.4" WT
