    Stage 5 Pro2020 Orange
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    5.8
    Frame
    		Aluminum
    		Fox Performance Float 34
    		Fox Float DPS Performance
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		SRAM Guide RE Hydraulic Disc
    		GX Eagle, NX Eagle
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		-
    Brand Site

    orangebikes.co.uk

    Summary

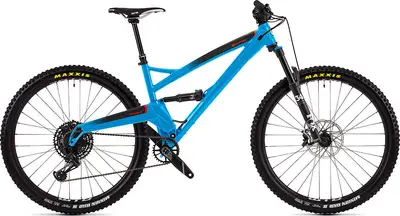

    		The Orange Stage 5 Pro is a 29″ aluminum frame full suspension trail bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Stage 5 Pro
    Other Trail bikes
    Geometry
    Specs
    Stage 5 Pro2020 Orange
    Frame

    Aluminum

    Fork

    FOX 34 FLOAT Performance, 42mm offset, 110x15mm Boost thru-axle, Option: RockShox Pike Ultimate

    Travel: 140mm

    Spring Type: Air

    Shock

    FOX DPS FLOAT Performance, 210mm x 50mm, Options: RockShox Super Deluxe Ultimate, FOX DPX2 FLOAT Factory

    Bottom Bracket

    SRAM DUB, 73mm

    Headset

    Cane Creek, ZS49/28.6 upper, EC49/40 lower, for tapered steerer, Option: Hope Tech

    Stem

    Race Face Chester, 35mm bore, 40mm length, Option: Renthal, 35mm

    Handlebar

    Burgtec RideWide Enduro, 800mm width, Option: Renthal Fatbar, 800mm width

    Saddle

    WTB Silverado Comp

    Seatpost

    SDG Tellis dropper, 150mm drop, Option: FOX Transfer Performance Elite dropper, 150mm drop

    Type: Dropper

    Pedals

    None, Option: Burgtec MK4 Composite

    Grips

    Strange 130, single lock-on, black

    Groupset
    Rear Derailleur

    SRAM GX Eagle, 12-speed

    Front Derailleur

    N/A

    Crank

    Truvativ Descendant 6k Eagle DUB

    Shifters

    SRAM NX Eagle, 12-speed

    Cassette

    SRAM NX Eagle PG1230, 12-speed, 11-50 tooth

    Chain

    SRAM NX Eagle, 12-speed

    Chain Guide

    None, Option: MRP 1x

    Brakes

    SRAM Guide RE, 200mm front rotor, 180mm rear rotor, Option: Shimano XT Trail, 203mm front rotor, 180mm rear rotor

    Type: SRAM Guide RE Hydraulic Disc

    Brake Levers

    SRAM Guide RE, Option: Shimano XT Trail

    Wheels
    Rims

    WTB ST Light i30, 30mm internal width, Option: e*thirteen TRS, 30mm internal width

    Front Hub

    Strange Pro, 110x15mm Boost front, 148x12mm Boost rear, Option: Hope Tech Pro 4

    Rear Hub

    Strange Pro, 110x15mm Boost front, 148x12mm Boost rear, Option: Hope Tech Pro 4

    Tires

    Maxxis Minion DHR II, EXO, TR, 29" x 2.4"
