Bike Comparison

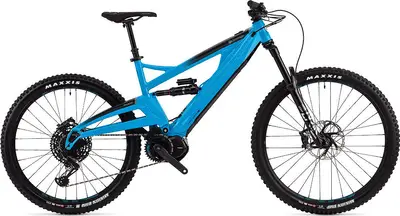

    Phase RS2020 Orange
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Enduro, E-Bike
    6.2
    Frame
    		Aluminum
    Fork
    		RockShox Lyrik Ultimate
    Shock
    		RockShox Super Deluxe Ultimate
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    Brakes
    		Mechanical Disc
    Motor
    		Shimano 250W 70Nm mid-drive
    Battery
    		Shimano 504Wh
    Groupset
    		X01 Eagle, GX Eagle
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		160mm
    Brand Site

    orangebikes.co.uk

    Summary
    		The Orange Phase RS is a 29″ / 27.5″ aluminum frame full suspension enduro e-bike with high-end components and mechanical disc brakes.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Phase RS
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    Phase RS

    Highest gear

    (descending)

    Geometry
    Specs
    Phase RS2020 Orange
    Frame

    Aluminum

    Fork

    RockShox Lyrik Ultimate, 42mm offset, Option: FOX 36 FLOAT Factory

    Shock

    RockShox Super Deluxe Ultimate, 230mm x 65mm, Option: FOX X2 FLOAT Factory

    Headset

    Cane Creek, ZS49/28.6 upper, EC49/40 lower, for tapered steerer, Option: Hope Tech

    Stem

    Hope Tech, 35mm clamp, 35mm length

    Handlebar

    Renthal Fatbar, 800mm width, 35mm bore

    Saddle

    SDG Radar, steel rails, black/black

    Seatpost

    FOX Transfer Performance Elite dropper, 150mm drop, Option: FOX Transfer Factory dropper, 150mm or 170mm drop

    Pedals

    None, Option: Burgtec MK4 Composite

    Grips

    Strange 130, single lock-on, black

    Groupset
    Rear Derailleur

    SRAM X01 Eagle, 12-speed

    Front Derailleur

    N/A

    Crank

    Shimano E8050

    Shifters

    SRAM GX Eagle, 12-speed, Single Click

    Cassette

    SRAM NX Eagle PG1230, 12-speed, 11-50 tooth

    Chain

    SRAM GX Eagle, 12-speed

    Chain Guide

    Shimano CDE80, Option: MRP 1x E-Bike

    Brakes

    Shimano XT Trail, 203mm rotors, Option: Hope Tech 3 E4, 203mm rotors

    Brake Levers

    Shimano XT Trail, Option: Hope Tech 3 E4,

    Wheels
    Rims

    e*thirteen TRS, 30mm inner width (29" front, 27.5" rear), Option: Stan's NoTubes Flow MK3

    Front Hub

    Hope Pro 4, 110x15mm Boost front, 148x12mm Boost rear

    Rear Hub

    Hope Pro 4, 110x15mm Boost front, 148x12mm Boost rear

    Tires

    Front: Maxxis Minion DHF, 3C, EXO+, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 27.5" x 2.4"

    Electric Components
    Motor

    Shimano STEPS E8000, 70Nm max torque

    Battery

    Shimano STEPS E8035, integrated
