MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Frame | Aluminum | |
| RockShox Revelation RC | ||
| RockShox Monarch RT | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Shimano Deore Hydraulic Disc | ||
| SLX | ||
Drivetrain | 1 × 11 | |
Suspension | Full | |
Front Travel | 150mm | |
Rear Travel | 140mm | |
Brand Site | ||

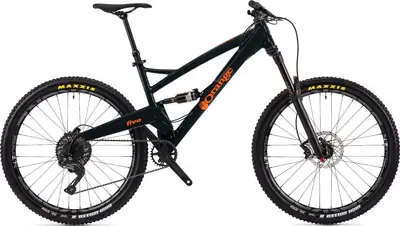

Summary | The Orange Five S is a 27.5″ aluminum frame full suspension trail bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Aluminum | |
|---|---|---|
Fork | RockShox Revelation RC Travel: 150mm Spring Type: Air | |
Shock | RockShox Monarch DB RT, 190mm x 51mm Travel: 140mm | |
Bottom Bracket | Race Face, 73mm | |
Headset | Cane Creek, 49mm | |
Stem | Kore Cubix, 50mm length, 35mm clamp | |
Handlebar | Kore Durox, 780mm width | |
Saddle | Kore Conex | |
Seatpost | Kore Dropper, 150mm drop Type: Dropper | |
Pedals | None included | |
Grips | Strange 130, single lock-on, black |
Rear Derailleur | Shimano SLX Shadow Plus | |
|---|---|---|
Front Derailleur | N/A | |
Crank | Race Face Aeffect, direct mount | |
Shifters | Shimano SLX, 11-speed | |
Cassette | SRAM PC-1130, 11 x 42, 11-speed | |
Chain | SRAM PC1110 | |
Chain Guide | N/A | |
Brakes | Shimano MT500 with 180mm rotors Type: Shimano Deore Hydraulic Disc | |
Brake Levers | Shimano MT500 |
Rims | Kore Realm 3.0, 32 hole | |
|---|---|---|
Front Hub | JoyTech, Boost rear | |
Rear Hub | JoyTech, Boost rear | |
Tires | Maxxis High Roller II EXO TR, 2.3" |
