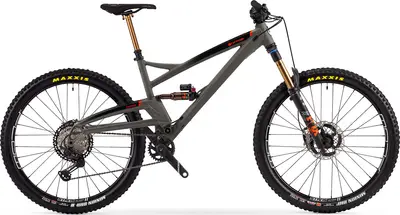

    Five EVO Factory2021 Orange
    Recommended
    MSRP
    $5,900
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    6.2
    Frame
    		Aluminum
    		Fox Factory Float 36
    		Fox Float DPX2 Factory
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano XT Hydraulic Disc
    		Truvativ Descendant Carbon, XT
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		130mm
    Brand Site

    orangebikes.co.uk

    Summary
    		The Orange Five EVO Factory is a 27.5″ aluminum frame full suspension trail bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Five EVO Factory
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    26 mph

    Five EVO Factory

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Five EVO Factory2021 Orange
    Frame

    Aluminum

    Fork

    FOX FLOAT 36 Factory, 37mm offset

    Travel: 140mm

    Spring Type: Air

    Shock

    FOX FLOAT DPX2 Factory, 190mm x 45mm

    Travel: 130mm

    Bottom Bracket

    SRAM DUB, 73mm

    Headset

    Cane Creek, ZS49/28.6 upper, EC49/40 lower

    Stem

    Burgtec Enduro MK3, CNC, 35mm

    Handlebar

    Burgtec RideWide Carbon, 800mm width

    Saddle

    SDG BelAir III

    Seatpost

    FOX Transfer Factory dropper, 175mm drop

    Type: Dropper

    Pedals

    None, Option: Burgtec Penthouse Flat MK5

    Grips

    Strange Grappler, lock-on

    Groupset
    Rear Derailleur

    Shimano Deore XT M8100, 12-speed

    Front Derailleur

    None

    Crank

    Truvativ Descendant Carbon Eagle DUB

    Shifters

    Shimano SLX M7100, 12-speed

    Cassette

    Shimano Deore XT M8100, 12-speed, 10-51 tooth

    Chain

    KMC, 12-speed

    Chain Guide

    OneUp upper slider

    Brakes

    Shimano Deore XT Trail, 4-piston, 203mm front rotor, 180mm rear rotor, Option: Shimano XTR, 203mm front rotor, 180mm rear rotor

    Type: Shimano XT Hydraulic Disc

    Brake Levers

    Shimano Deore XT Trail, Option: Shimano XTR

    Wheels
    Rims

    Stan's NoTubes Flow MK3

    Front Hub

    Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver

    Rear Hub

    Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver

    Tires

    Front: Maxxis Minion DHF, 3C, EXO, 27.5" x 2.5", Rear: Maxxis Minion DHR II, EXO, 27.5" x 2.4"
