 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro | |
| Aluminum | ||
Fork | Fox Factory Float 36 | |
Shock | Fox Float X2 Factory | |
Wheels | Aluminum | |
| 27.5″ | ||
Brakes | Mechanical Disc | |
Groupset | XTR | |
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 165mm | |
Brand Site | ||

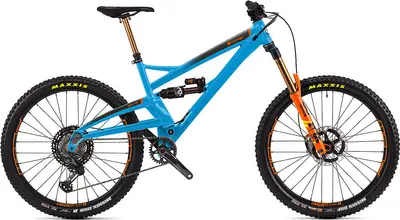

Summary | The Orange Alpine 6 XTR is a 27.5″ aluminum frame full suspension enduro bike with ultra high-end components and mechanical disc brakes. | |
Based on frame geometry and build specs.
Frame | Aluminum | |
|---|---|---|
Fork | FOX 36 FLOAT Factory, 46mm offset, 110x15mm Boost thru-axle | |
Shock | FOX X2 FLOAT Factory, 230mm x 65mm | |
Bottom Bracket | Shimano HOLLOWTECH II, 73mm | |
Headset | Hope Tech, ZS49/28.6 upper, EC49/40 lower for tapered steerer | |
Stem | Burgtec MK2 Enduro, 35mm clamp | |
Handlebar | Burgtec RideWide Carbon, 800mm width, 35mm bore | |
Saddle | SDG Radar, CrMo rails, black/black | |
Seatpost | FOX Transfer Factory dropper, 150mm or 170mm drop | |
Pedals | None, Option: Burgtec MK4 Composite | |
Grips | Strange 130, single lock-on, black |
Rear Derailleur | Shimano XTR, 12-speed | |
|---|---|---|
Front Derailleur | N/A | |
Crank | Shimano XTR | |
Shifters | Shimano XTR, 12-speed | |
Cassette | Shimano XTR, 12-speed, 10-51 tooth | |
Chain | Shimano XTR, 12-speed | |
Chain Guide | MRP 1x | |
Brakes | Shimano XTR, 203mm front rotor, 180mm rear rotor | |
Brake Levers | Shimano XTR |
Rims | Stan's NoTubes Flow MK3 | |
|---|---|---|
Front Hub | DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear | |
Rear Hub | DT Swiss 350, 110x15mm Boost front, 148x12mm Boost rear | |
Tires | Front: Maxxis Minion DHF, 3C, EXO, TR, 27.5" x 2.5", Rear: Maxxis Minion DHR II, EXO, TR, 27.5" x 2.4" |
