 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro | |
| Aluminum | ||
Fork | RockShox Lyrik Ultimate | |
Shock | RockShox Super Deluxe Ultimate | |
Wheels | Aluminum | |
| 27.5″ | ||
Brakes | Hydraulic Disc | |
Groupset | GX Eagle, NX Eagle | |
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 165mm | |
Brand Site | ||

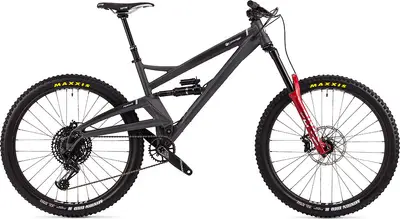

Summary | The Orange Alpine 6 Pro-Line is a 27.5″ aluminum frame full suspension enduro bike with high-end components. | |
Based on frame geometry and build specs.
Frame | Aluminum | |
|---|---|---|
Fork | RockShox Lyrik Ultimate, 46mm offset | |
Shock | RockShox Super Deluxe Ultimate, 230mm x 65mm | |
Bottom Bracket | SRAM DUB, 73mm | |
Headset | Cane Creek, ZS49/28.6 upper, EC49/40 lower, for tapered steerer | |
Stem | Race Face Chester, 35mm clamp diameter, 40mm length | |
Handlebar | Burgtec RideWide Enduro, 800mm width | |
Saddle | WTB Silverado Comp | |
Seatpost | SDG Tellis dropper, 150mm drop | |
Pedals | N/A | |
Grips | Strange 130 Single, lock-on, black |
Rear Derailleur | SRAM GX Eagle, 12-speed | |
|---|---|---|
Front Derailleur | N/A | |
Crank | Truvativ Descendant 6k Eagle DUB | |
Shifters | SRAM NX Eagle, 12-speed | |
Cassette | SRAM SX Eagle PG1210, 12-speed, 11-50 tooth | |
Chain | SRAM SX Eagle, 12-speed | |
Chain Guide | N/A | |
Brakes | SRAM Guide RE, 4-piston, 200mm front rotor, 180mm rear rotor | |
Brake Levers | SRAM Guide RE |
Rims | WTB ST Light i30, 30mm internal width | |
|---|---|---|
Front Hub | Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver | |
Rear Hub | Strange Pro, 110x15mm Boost front, 148x12mm Boost rear with HG driver | |
Tires | Maxxis Minion DHR II, EXO, TR, 27.5" x 2.4" |
