Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Today’s Deals
Bike Comparison
    Recommended
    MSRP
    $3,399
    Where to Buy
    $1

    At

    Category
    Commuter, E-Bike
    Weight
    52.9 lbs
    6.8
    Frame
    Aluminum
    RST
    Wheels
    Aluminum
    Wheel Size
    650b
    TRP Hydraulic Disc
    Shimano 250W 60Nm mid-drive
    508Wh
    Deore
    Drivetrain
    1 × 10
    Suspension
    Hardtail
    Front Travel
    100mm
    Brand Site
    Summary

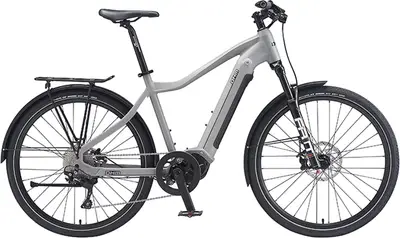

    The OHM Quest is a 650b aluminum frame commuter e-bike with upper mid-range components and trp hydraulic disc brakes.

    Ask 99 Spokes

    Similar Bikes
    Insights
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Frame

    ADVANCE™ Hydroformed Aluminum Alloy

    Fork

    RST First Air Suspension, 100mm Travel, Black Anodized 32mm Stanchions, Compression Clicker, Rebound Adjust, 100mm Hub Spacing, 15mm Thru-Axle with Quick Release

    Travel100mm

    Spring TypeAir

    Headset

    Ritchey Pro Logic, Sealed, Tapered 1-1/8"- 1-1/2"

    Stem

    Promax DA230 Aluminum Alloy, 70mm / 80mm / 90 mm / 100mm Length, 6° Rise, 31.8mm Clamp Diameter with Custom Light Mount, Four 10mm Spacers, One 5mm Spacer

    Handlebar

    Ritchey Comp, Aluminum Alloy, Low-Rise, 670mm / 710mm Length, 25mm Rise, 7-Degree Backsweep

    Saddle

    OHM Branded Ergon ST10 Gel, Chromoly Rails

    Seatpost

    Ritchey Comp, Aluminum Alloy, 25mm Offset, Single Bolt Clamp

    TypeRigid

    Pedals

    Wellgo MG6 Magnesium Platform with Adjustable Pins

    Grips

    Ergon GP1, Ergonomic Rubber, Dual-Density, Locking, 130mm / 150mm Length

    Groupset
    Crank

    OHM Branded Chainway Custom Specced Crank Arms, Aluminum Alloy, 170mm / 175mm Length, 46 Narrow-Wide Tooth Chainring with Alloy Chain Guard, Shimano Hollowtech II Bottom Bracket, Hollow Spindle

    Shifters

    Shimano Deore Triggers on Right (Two-Way High Lever, Three-Shift Low Lever)

    Cassette

    10 Speed 1x10 Shimano Deore with One-Way Clutch, 11-36 Tooth Cassette

    Brakes

    TRP Zurich Hydraulic Disc with 180mm Rotors, Quad Piston Calipers, TRP Two-Finger Levers with Tool-Free Adjust Reach

    TypeTRP Hydraulic Disc

    Wheels
    Rims

    Alexrims FR30, Aluminum Alloy, Double Wall, 32 Hole, 25mm Width, Aluminum Eyelets

    Spokes

    Sha-Dar, Stainless Steel, 14 Gauge, Black with Brass Nipples

    Tires

    Schwalbe Big Ben, 27.5" x 2.0" (50-584)

    Electric Components
    Motor

    Weight: 5.51 lbs (2.49 kg), Brand: Shimano E7000, Type: Mid-Mounted Geared Motor, Nominal Output: 250 watts, Peak Output: 440 watts, Torque: 60 Newton meters (Explore Mode: Boost and Trail are Set to Medium, Dynamic Mode: Boost is High and Trail is Low, Custom Mode: User Setup in E-Tube App)

    Battery

    Weight: 5.9 lbs (2.67 kg), Brand: LG Brand, 18650 Format, 3500Ma LGMJ1 Cells, Voltage: 36.3 volts, Amp Hours: 14 ah, Watt Hours: 508.2 wh, Chemistry: Lithium-ion

    Display

    Shimano SC-E7000, Fixed, Grayscale LCD, Backlit, Adjustable Brightness (Hold Circle Button to Enter Settings, Use Left-Mounted SW-E7000-L Button Pad to Navigate: Clear, Clock, Light, Beep, Unit, Language, Font Color, Adjust, Shift Timing, RD Protection Reset, Exit)
