    RAG+ 22022 NS
    Recommended
    MSRP
    $1,799
    Where to Buy
    —
    $1

    At

    Category
    		Gravel
    Weight
    		22.5 lbs
    2.9
    Frame
    		Aluminum
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Clearance
    		45c
    		TRP Mechanical Disc
    		Apex
    Drivetrain
    		1 × 11
    Brand Site

    nsbikeusa.com

    Summary

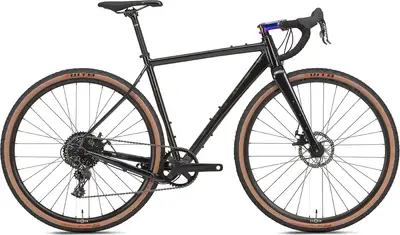

    		The NS RAG+ 2 is an aluminum frame gravel bike with mid-range components and trp mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    33 mph

    RAG+ 2

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    RAG+ 22022 NS
    Frame

    NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142x12mm dropouts

    Tire Clearance: 45c

    Colors: Black; Coral

    Fork

    NS Gravel+ carbon fork, 15mm dropouts, 1.5T, NS thru axle

    Shock

    /

    Headset

    GW integrated tapered IS42/IS52, sealed bearings

    Stem

    RAG+ Stem 31.8 S:80mm, M:90mm, L:100mm, XL:110mm, angle, - 8°

    Handlebar

    NS Flare 31.8, 420mm, 440mm, 460mm

    Saddle

    Octane OneRocker2

    Seatpost

    Kalloy 27.2mm

    Type: Rigid

    Pedals

    /

    Grips

    Velo VLT-8111

    Groupset
    Rear Derailleur

    SRAM Apex Type 2.1, long cage, 11spd

    Crank

    FSA Omega S:170mm, M:172.5mm, L:175mm 42t

    Shifters

    SRAM Apex, 11spd

    Cassette

    Sun Race CSMS7 11-42t

    Chain

    SRAM, 11spd

    Brakes

    Front: TRP Spyre (mech) 160mm, Rear: TRP Spyre (mech) 160mm

    Type: TRP Mechanical Disc

    Wheels
    Rims

    Alex Draw 2.1P asymmetrical, 32h, tubeless compatible

    Spokes

    Spokes w/14mm nipples

    Front Hub

    Joytech 100x15mm

    Tires

    WTB Nano Comp 700x40C
