    Define AL 170 22022 NS
    Recommended
    MSRP
    ($4,766)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro
    Weight
    		34.8 lbs
    5.4
    Frame
    		Aluminum
    		RockShox ZEB
    		X-Fusion
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    		Shimano Hydraulic Disc
    		Deore
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		180mm
    Rear Travel
    		170mm
    Brand Site

    nsbikes.com

    Summary

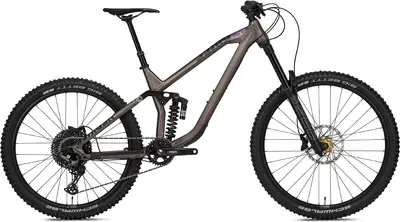

    		The NS Define AL 170 2 is a 29″ / 27.5″ aluminum frame full suspension enduro bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Define AL 170 2
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    Define AL 170 2

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Define AL 170 22022 NS
    Frame

    NS Define AL w/ 170mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, semi internal cable routing

    BB Standard: BSA, 73mm, Threaded

    Fork

    RockShox ZEB 180mm travel, 110x15mm Boost, 1.5T, 44mm offset

    Travel: 180mm

    Spring Type: Air

    Shock

    X-Fusion Vector R Trunnion 225x70mm, S

    Travel: 170mm

    Bottom Bracket

    Shimano BSA 73mm

    Headset

    GW integrated tapered IS42/IS52, sealed bearings

    Stem

    NS Tone 35, 45mm

    Handlebar

    NS Bar 35, 800mm, 20mm rise

    Saddle

    Octane OneRocket2, CrMo hollow rails

    Seatpost

    X-Fusion Manic internal S

    Type: Dropper

    Pedals

    /

    Grips

    NS Hold Fast

    Groupset
    Rear Derailleur

    Shimano Deore M6100, 12spd

    Crank

    Shimano Deore FCMT5101 170mm 34t

    Shifters

    Shimano Deore M6100, 12spd

    Cassette

    Sunrace CSMZ800, 12spd 11-51T

    Chain

    Shimano, 12 spd

    Chain Guide

    /

    Brakes

    Front: Shimano MT420, 200mm, Rear: Shimano MT420, 200mm

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    Octane One Solar 29” front, Octane One Solar 27.5” rear, 32h, tubeless ready

    Spokes

    Spokes w/14mm nipples

    Front Hub

    NS 15 Boost 110x15mm disc (sealed bearings)

    Rear Hub

    NS 148x12mm Boost (sealed bearings)

    Tires

    Schwalbe Big Betty BikePark 29x2.4" / Schwalbe Big Betty BikePark 27.5x2.4"
