    Define AL 1602022 NS
    Recommended
    MSRP
    ($4,632)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro
    Weight
    		33.3 lbs
    4.7
    Frame
    		Aluminum
    		RockShox 35 Gold RL
    		Marzocchi Bomber
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano Deore Hydraulic Disc
    		Deore
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		160mm
    Rear Travel
    		160mm
    Brand Site

    nsbikes.com

    Summary

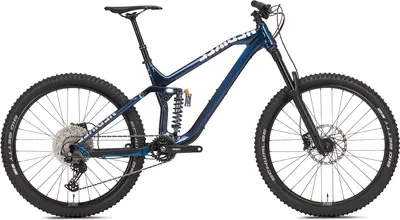

    		The NS Define AL 160 is a 27.5″ aluminum frame full suspension enduro bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Define AL 160
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    Define AL 160

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Define AL 1602022 NS
    Frame

    NS Define AL w/ 160mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes,

    BB Standard: BSA, 73mm, Threaded

    Fork

    Rock Shox 35 Gold RL 160mm travel, 15x110mm Boost, 1.5 tapered steerer tube, 37mm offset

    Travel: 160mm

    Spring Type: Air

    Shock

    Marzocchi Bomber CR Trunnion 205x65, S-400, M-450, L-500 lbs/in

    Travel: 160mm

    Bottom Bracket

    Shimano BSA 73mm

    Headset

    integrated tapered IS42/IS52, sealed bearings

    Stem

    NS Tone 35, 45mm

    Handlebar

    NS Bar 35, 780mm, 20mm rise

    Saddle

    Octane One Crit , CrMo hollow rails

    Seatpost

    Kind Shox Rage i internal S-125, M-150, L-170mm, 31,6mm

    Type: Rigid

    Pedals

    /

    Grips

    NS Hold Fast

    Groupset
    Rear Derailleur

    Shimano Deore M6100, 12spd

    Crank

    Shimano Deore FCMT5101 170mm 34t

    Shifters

    Shimano Deore M6100, 12spd

    Cassette

    Sunrace CSMZ800, 12spd 11-51T

    Chain

    Shimano, 12 spd

    Chain Guide

    /

    Brakes

    Front: Shimano MT410, 200mm, Rear: Shimano MT410, 180mm

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Rims

    Octane One Solar 27.5”, 32h, tubeless compatible

    Spokes

    Spokes w/14mm nipples

    Front Hub

    NS 110x15mm Boost (sealed bearings)

    Rear Hub

    NS 148x12mm Boost (sealed bearings)

    Tires

    Schwalbe Big Betty BikePark 27.5x2.4" / Schwalbe Big Betty BikePark 27.5x2.4"
