    Define 1302023 NS
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    Weight
    		30.6 lbs
    7.2
    Frame
    		Carbon
    		Fox Factory Float 34
    		Fox Float DPS Factory
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		SRAM G2 RSC Hydraulic Disc
    		GX Eagle, Truvativ Descendant
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		130mm
    Brand Site

    nsbikes.com

    Summary

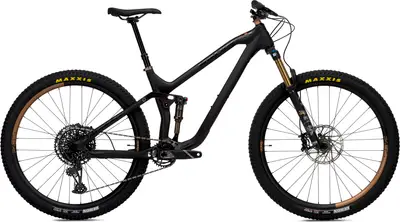

    		The NS Define 130 is a 29″ carbon frame full suspension trail bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Define 130
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    Define 130

    Highest gear

    (descending)

    Geometry
    Specs
    Define 1302023 NS
    Frame

    NS Define, carbon fibre w/ 130mm travel, custom reach adjustable offset cups (+/- 10mm)

    BB Standard: BB86/BB92, Press Fit

    Fork

    Fox Factory 34 Float FIT4, 140mm travel, 3pos-Adj w/ Open Mode Adj, 15x110mm Boost, 1.5 tapered steerer tube, 44 offset

    Travel: 140mm

    Spring Type: Air

    Shock

    Fox Factory Float DPS 3pos-Adj Evol LV Trunnion 185x55

    Travel: 130mm

    Bottom Bracket

    SRAM DUB BB92

    Headset

    NS custom tapered 1&1/8"-1.5" IS42/IS52 reach adjustable offset cups (+/-10mm), sealed bearing

    Stem

    NS Quantum Lite 35 , 45mm

    Handlebar

    NS Licence Carbon 35 , 780mm

    Saddle

    WTB Volt Medium Cromoly

    Seatpost

    Race Face Aeffect R 150, 170mm, 31,6mm

    Type: Dropper

    Pedals

    /

    Grips

    NS Hold Fast

    Groupset
    Rear Derailleur

    SRAM GX Eagle type 3, 12spd

    Crank

    Truvativ Descendant 6K DUB 170mm 32t

    Shifters

    SRAM GX EAGLE, 12spd

    Cassette

    SRAM XG-1275, 10-50t 12 speed

    Chain

    SRAM, 12 spd

    Chain Guide

    /

    Brakes

    Front: SRAM G2 RSC 4 piston, 200mm, Rear: SRAM G2 RSC 4 piston, 180mm

    Type: SRAM G2 RSC Hydraulic Disc

    Wheels
    Rims

    NS Enigma Roll 29", 32h, tubeless compatible

    Spokes

    Spokes w/14mm nipples

    Front Hub

    NS Rotary 15 Boos t 15x110 disc (sealed bearings)

    Rear Hub

    NS Rotary Cassette 148x12mm Boost (sealed bearings)

    Tires

    Maxxis Rekon 29 x 2.4" WT TR EXO
