MSRP | $1,735 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Weight | 38.1 lbs | |
Frame | ||
| Marzocchi | ||
| Marzocchi | ||
Wheels | Aluminum | |
Wheel Size | 24″ | |
| Hayes Hydraulic Disc | ||
| X4 | ||
Drivetrain | 1 × 8 | |
Suspension | Full | |
Front Travel | 120mm | |
Rear Travel | - | |
Brand Site | ||

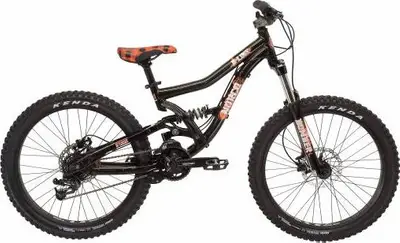

Summary | The Norco B-LINE is a 24″ full suspension trail bike with mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | New 2009 design, 5.5 “ travel, low standover, hydraform support arms | |
|---|---|---|
Fork | Marzocchi Dirt Jumper 3, 120mm travel, 1-1/8” steer tube Travel: 120mm Spring Type: Air | |
Shock | Marzocchi Coil R | |
Bottom Bracket | Howitzer Spline BB, | |
Headset | FSA TH-855 1-1/8” | |
Stem | Funn Rippa, 31.8mm, 45mm extension, custom design | |
Handlebar | Funn Fatboy, 710 mm x 50mm rise, 31.8mm, custom design | |
Saddle | Norco Shore, short profile, custom cover, steel rail | |
Seatpost | Double bolt, 27.2 Type: Rigid | |
Pedals | Alloy Flat pedal, black | |
Grips | Norco design clear rubber |
Rear Derailleur | SRAM X-4, 8 speed, medium cage | |
|---|---|---|
Front Derailleur | N/A | |
Crank | Truvativ Ruktion, 36T, 170 mm, E-13 LS-40 | |
Shifters | SRAM X-4 trigger, 8 speed rear | |
Cassette | SRAM PG-820, 8 speed, 11-32T | |
Chain | KMC Z-72 | |
Brakes | Front: Hayes Stroker Ryde, 7” rotor, Rear: Hayes Stoker Ryde, 7” rotor Type: Hayes Hydraulic Disc | |
Brake Levers | Hayes |
Rims | Alien Nation PBR 36 H, 24” black | |
|---|---|---|
Spokes | Black UPC 2.0 | |
Front Hub | KT alloy disc hub, black, 36 H | |
Rear Hub | KT 135 x 10, QR 8 spd, black, 36 H | |
Tires | Kenda Nevegal 24 x 2.5, Stick E rubber |
