MSRP | $1,699 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Fat, E-Bike | |
Weight | 59.3 lbs | |
Frame | Aluminum | |
| Aluminum | ||
Wheels | Aluminum | |
Wheel Size | 26″ | |
| Tektro Mechanical Disc | ||
| 500W 80Nm hub-drive | ||
| 624Wh | ||
| Shimano | ||
Drivetrain | 3 × 8 | |
Brand Site | ||

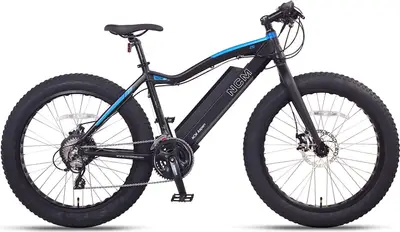

Summary | The NCM Aspen is a 26″ aluminum frame rigid fat e-bike with modest components and tektro mechanical disc brakes. | |
Ask 99 Spokes
Frame | 6061 Aluminum Alloy | |
|---|---|---|
Fork | Rigid Aluminum Alloy, 135mm Hub Spacing, 9mm Axle with Quick Release Skewer | |
Headset | Neco, Integrated, Threadless Internal Cups, Tapered 1-1/8" to 1-1/2" | |
Stem | Promax, Alloy, 110mm Length, 31.8mm Clamp Diameter, One 15mm Spacer, Two 10mm Spacers, One 5mm Spacer | |
Handlebar | Flat, Aluminum Alloy, 680mm Length | |
Saddle | Velo, Active | |
Seatpost | Promax, Aluminum Alloy, Forged Head Type: Rigid | |
Pedals | Wellgo B087 Aluminum Alloy Platform with Fixed Pins, Black | |
Grips | Velo, Ergonomic Rubber, Locking |
Crank | Shimano FC-M311, Forged Aluminum Alloy Arms, 170mm Length, Square Taper Bottom Bracket Spindle, 48-38-28 Tooth Steel Chainrings | |
|---|---|---|
Shifters | Shimano Triggers on Left and Right (One-Way High Lever, Three-Shift Low Lever) | |
Cassette | 24 Speed 3x8 Shimano Altus Front and Acera Rear Derailleur, Shimano Cassette 11-32 Tooth | |
Brakes | Tektro MD-M280 Mechanical Disc with 180mm Front Rotor and 160mm Rear Rotor, Four-Finger Levers with Rubberized Edge, Integrated Bell, and Motor Inhibitor on Left Type: Tektro Mechanical Disc |
Rims | Aluminum Alloy, Double Walled, Punched Out Ovals, 80mm Outer Width, 36 Hole, Black | |
|---|---|---|
Spokes | Stainless Steel, 13 Gauge, Silver with Nipples | |
Tires | CST C1752, 26" x 4" (100-559) |
Motor | Weight: 11 lbs (4.98 kg), Brand: Das-Kit X15F, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Torque: 80 Newton meters | |
|---|---|---|
Battery | Weight: 9.2 lbs (4.17 kg), Brand: Dehawk H12 (Made by DLG), Voltage: 48 volts, Amp Hours: 13 ah, Watt Hours: 624 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM) | |
Display | Das-Kit L7, Fixed, Backlit, Monochrome LCD, Buttons: +, M, -, (Hold + for 2 Seconds for Backlight, Hold + for 3 Seconds to Clear Trip Distance, Hold - for Walk Mode, Hold + and - for Settings and Enter Code 8018) |
