MSRP | $1,199 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Gravel | |
Frame | Aluminum | |
| Aluminum | ||
Wheels | Aluminum | |
Wheel Size | 700c | |
| Mechanical Disc | ||
| Sora | ||
Drivetrain | 2 × 9 | |
Brand Site | ||

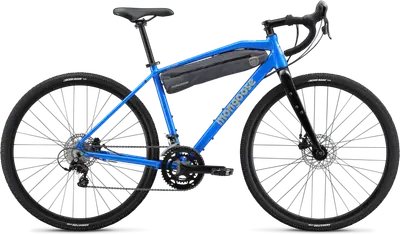

Summary | The Mongoose Guide is an aluminum frame gravel bike with modest components and mechanical disc brakes. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Tectonic T2, aluminum, 700c adventure geometry, internal cable routing, 9 mm x 142 mm dropout, replaceable hanger, tapered headtube BB Standard: BSA, 68mm, Threaded | |
|---|---|---|
Fork | Aluminum rigid fork, 700c, aluminum steerer, 12 mm x 100 mm, QR | |
Bottom Bracket | Prowheel, cartridge, square taper, threaded 68 mm shell | |
Headset | Threadless, ZS44/ZS56, retainer bearing | |
Stem | Xposure aluminum, threadless, 90 mm, 7° | |
Handlebar | Xposure, aluminum, 440 mm width, 31.8 mm clamp | |
Saddle | Mongoose adventure, steel rails | |
Seatpost | Xposure, aluminum, 300 mm, 27.2 mm Type: Rigid | |
Pedals | Mongoose, nylon | |
Grips | Xposure, non-slip tape |
Rear Derailleur | Microshift RD-R32S | |
|---|---|---|
Front Derailleur | MicroSHIFT, 31.8 mm clamp | |
Crank | Prowheel RPL-421, aluminum, 46/34T | |
Shifters | Shimano Sora ST-R3000, 2 x 9 | |
Chain | KMC Z8 | |
Brakes | Radius Flat mount, mechanical, aluminum, 160 mm rotor Type: Mechanical Disc |
Rims | Xposure, aluminum double wall, 19 mm ID, 32H, tubeless compatible, | |
|---|---|---|
Spokes | 14G, stainless steel | |
Front Hub | Xposure, aluminum, ball bearing, 9 mm x 100 mm, 32H, 6-bolt | |
Rear Hub | Xposure, aluminum, 10 mm x 135 mm QR, 32H, 6-bolt | |
Tires | Kenda Kick Back, 700c x 40c, wire bead |
