MSRP | $6,040 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Downhill | |
Frame | Aluminum | |
| Fox Performance Elite Float 40 | ||
| Fox DHX2 Performance Elite | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| SRAM Guide R Hydraulic Disc | ||
| Zee | ||
Drivetrain | 1 × 10 | |
Suspension | Full | |
Front Travel | 203mm | |
Rear Travel | 205mm | |
Brand Site | ||

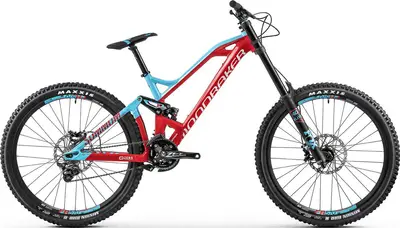

Summary | The Mondraker Summum Pro is a 27.5″ aluminum frame full suspension downhill bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Aluminum BB Standard: BSA, 83mm, Threaded | |
|---|---|---|
Fork | FOX 40 Float FIT4 EVOL Performance Elite, air spring, 20mm axle, low-speed compression, rebound, air preload, 1.125" straight steerer Travel: 203mm Spring Type: Air | |
Shock | FOX DHX2 Performance Elite, 222mm x 70mm, low-speed compression, rebound, spring preload, S: 450lbs, M: 500lbs, L/XL: 550lbs Travel: 205mm Spring Type: Coil | |
Bottom Bracket | Shimano 83mm BSA | |
Headset | Onoff Mercurium 1.5 ZS, ACB sealed bearings, 56mm external diameter | |
Stem | Onoff Stoic DH Integrated FG, 20-30mm adjustable length, 6061 aluminium, 31.8mm clamp | |
Handlebar | Mondraker double butted 6061 aluminum, 25mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp | |
Saddle | SDG I-beam I-Fly 2.0, high-density PU, cordura protection | |
Seatpost | SDG I-Beam SP-751, alloy, 300mm length, micro-adjustment Type: Rigid | |
Pedals | N/A | |
Grips | Onoff Diamond, lock-on, 130mm |
Rear Derailleur | Shimano Zee RD-M640-SS, 10-speed, Shadow Plus technology, short cage | |
|---|---|---|
Front Derailleur | N/A (1x-specific) | |
Crank | Shimano Zee M645, alloy, reinforced steel axle, 165mm length | |
Shifters | Shimano Zee SL-M640, 10-speed, 2-way release | |
Cassette | Shimano Ultegra CS-HG500-10, 11-25 tooth, 10-speed | |
Chain | Shimano HG95, 10-speed | |
Chain Guide | e*thirteen LG1+, DMB (Direct Mount Bashguard) Gen 2 Stealth Idler, aluminum hardware, adjustable/replaceable lower armature, solvent-resistant polycarbonate, larger ISCG05 mount holes, adjustable upper slider | |
Brakes | SRAM Guide R, lightweight 4-piston dual-diameter calipers, G2 6-bolt one-piece rotors, 203mm front, 200mm rear, semi-metallic pads Type: SRAM Guide R Hydraulic Disc | |
Brake Levers | SRAM Guide R, tool-free reach adjust, ambidextrous lever mount |
Rims | DT Swiss FR570, 33mm external width, tubeless ready, 32 hole | |
|---|---|---|
Spokes | CN stainless steel, butted 2.0-1.8-2.0 | |
Front Hub | MDK Disc Pro DH, IS 6-bolt, 110x20mm front, 150x12mm rear | |
Rear Hub | MDK Disc Pro DH, IS 6-bolt, 110x20mm front, 150x12mm rear | |
Tires | Maxxis Minion DHR II, Super Tacky compound, wire bead, 27.5" x 2.4" |
