Category | Downhill | |
Weight | 36.8 lbs | |
Frame | Aluminum | |
| RockShox BoXXer Select | ||
| Fox Van Performance | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| SRAM Code R Hydraulic Disc | ||
| X7, X5 | ||
Drivetrain | 1 × 9 | |
Suspension | Full | |
Front Travel | 200mm | |
Rear Travel | 205mm | |
Brand Site | ||

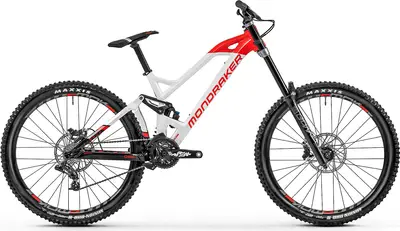

Summary | The Mondraker Summum is a 27.5″ aluminum frame full suspension downhill bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Aluminum BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Rockshox Boxxer Select RC, DebonAir, 1-1/8” steerer tube, Boost 20x110mm axle. Low-speed compression, rebound, air preload adjustment Travel: 200mm Spring Type: Air | |
Shock | FOX Van RC Performance, 222x70mm. Low-speed compression, rebound, spring preload adjustments Travel: 205mm Spring Type: Coil | |
Bottom Bracket | Race Face 73mm BSA | |
Headset | Onoff Mercurium, 41x30.15x7x45°x45° ACB sealed bearings, geometry kit cups (+/-2° head angle adjustment), external diameter 56mm | |
Stem | Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm clamp, 6061 alloy, 2x6mm spacers included | |
Handlebar | OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm clamping diameter | |
Saddle | SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides | |
Seatpost | SDG Micro I-Beam SP-751 Alloy, 300mm, micro-adjustment Type: Rigid | |
Pedals | N/A | |
Grips | Onoff Twin, 1lock-on, 135mm |
Rear Derailleur | SRAM X7 short cage 9-speed | |
|---|---|---|
Front Derailleur | None | |
Crank | Race Face Chester, 165mm | |
Shifters | SRAM X5 9-speed | |
Cassette | SRAM PG-950, 9-speed, 11-26 tooth | |
Chain | SRAM PC-951 9-speed | |
Chain Guide | e*thirteen LG1 | |
Brakes | SRAM Code R with steel-backed metal sintered pads and Centerline 200mm 6-bolt rotors Type: SRAM Code R Hydraulic Disc | |
Brake Levers | SRAM Code R |
Rims | MDK-DP1, 32mm external width | |
|---|---|---|
Spokes | CN stainless steel | |
Front Hub | MDK DC315, Boost 20x110mm front and 12x150mm rear | |
Rear Hub | MDK DC315, Boost 20x110mm front and 12x150mm rear | |
Tires | Maxxis Minion DHR II 2.4", Super Tacky compound, wire bead front and rear |
