MSRP | $4,335 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Downhill | |
Frame | Aluminum | |
| Marzocchi | ||
| Fox Van Performance | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| SRAM Guide R Hydraulic Disc | ||
| X7, X5 | ||
Drivetrain | 1 × 9 | |
Suspension | Full | |
Front Travel | 200mm | |
Rear Travel | 205mm | |
Brand Site | ||

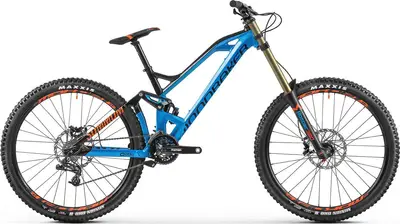

Summary | The Mondraker Summum is a 27.5″ aluminum frame full suspension downhill bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Aluminum BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Marzocchi 380 CR, coil spring, 20mm axle, low-speed compression, rebound, spring preload, 1.125" straight steerer Travel: 200mm Spring Type: Coil | |
Shock | FOX Van RC Performance, 222mm x 70mm, low-speed compression, rebound, spring preload, S: 400lbs, M: 450lbs, L/XL: 500lbs Travel: 205mm Spring Type: Coil | |
Bottom Bracket | Truvativ Howitzer XR, 73mm BSA | |
Headset | Onoff Mercurium 1.5 ZS, ACB sealed bearings, 56mm external diameter | |
Stem | Onoff Stoic DH Integrated FG, 20-30mm adjustable length, 6061 aluminium, 31.8mm clamp | |
Handlebar | Mondraker double butted 6061 aluminum, 25mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp | |
Saddle | SDG I-beam I-Fly 2.0, high-density PU, cordura protection | |
Seatpost | SDG I-Beam SP-751, alloy, 300mm length, micro-adjustment Type: Rigid | |
Pedals | N/A | |
Grips | Onoff Diamond, lock-on, 130mm |
Rear Derailleur | SRAM X7, 9-speed, short cage, exact actuation | |
|---|---|---|
Front Derailleur | N/A (1x-specific) | |
Crank | Truvativ Ruktion 1.0, alloy HP cast arm, 165mm length | |
Shifters | SRAM Trigger X5, 1:1 actuation | |
Cassette | SRAM PG-950, 11-26 tooth, 9-speed | |
Chain | SRAM PC-95,1 9-speed | |
Chain Guide | e*thirteen LG1, nickel chrome protector, adjustable height | |
Brakes | SRAM Guide R, lightweight 4-piston dual-diameter calipers, G2 6-bolt one-piece rotors, 203mm front, 200mm rear, semi-metallic pads Type: SRAM Guide R Hydraulic Disc | |
Brake Levers | SRAM Guide R, tool-free reach adjust, ambidextrous lever mount |
Rims | MDK-DP1, 32mm external width, 32 hole | |
|---|---|---|
Spokes | CN stainless steel | |
Front Hub | MDK Disc Pro DH, IS 6-bolt, 110x20mm front, 150x12mm rear | |
Rear Hub | MDK Disc Pro DH, IS 6-bolt, 110x20mm front, 150x12mm rear | |
Tires | Maxxis Minion DHR II, Super Tacky compound, wire bead, 27.5" x 2.4" |
