Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices
Today’s Deals | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Fitness, E-Bike | |
Weight | 50.0 lbs | |
Frame | Aluminum | |
| RockShox Recon Silver RL | ||
Wheels | Aluminum | |
Wheel Size | 29″ | |
| SRAM Level T Hydraulic Disc | ||
| Bosch 600W 85Nm mid-drive | ||
| Bosch 625Wh | ||
| SX Eagle | ||
Drivetrain | 1 × 12 | |
Suspension | Hardtail | |
Front Travel | 120mm | |
Brand Site | ||

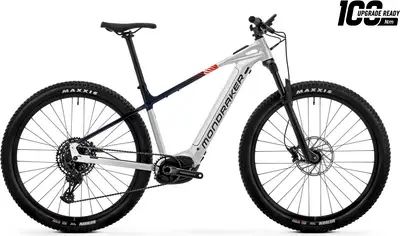

Summary | The Mondraker PRIME is a 29″ aluminum frame fitness e-bike with upper mid-range components and sram level t hydraulic disc brakes. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor Hanger Standard: UDH Colors: Gray / Obsidian/orange; White / Blue/red | |
|---|---|---|
Fork | RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload Travel: 120mm Spring Type: Air | |
Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º | |
Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore | |
Handlebar | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. | |
Saddle | MDK ebike black | |
Seatpost | Onoff S3 0-R, diameter 31.6mm, length 400mm Type: Rigid | |
Grips | Onoff Beehive, 1lock-on, 135mm |
Rear Derailleur | SRAM SX Eagle,12s | |
|---|---|---|
Crank | Race Face Aeffect-R ebike, 160mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD | |
Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click | |
Chain | SRAM SX Eagle, 12s, Powerlock | |
Brakes | Front: SRAM Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: SRAM Level T Hydraulic Disc | |
Brake Levers | SRAM Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings |
Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes | |
|---|---|---|
Spokes | Mavic J-bend double butted, contactless lacing | |
Front Hub | Mavic, Boost 15x110mm, IS 6 bolts | |
Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub | |
Tires | Front: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead, Rear: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
Motor | New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) | |
|---|---|---|
Battery | Bosch Powertube 625Wh | |
Display | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
