Recommended |
---|
MSRP | ||
---|---|---|
Where to Buy | — $1 At | |
Category | Enduro, E-Bike | |
Weight | 56.2 lbs | |
Aluminum | ||
Fork | RockShox Lyrik Ultimate | |
Shock | RockShox Super Deluxe Coil Ultimate | |
Wheels | Aluminum | |
29″ | ||
Brakes | Hydraulic Disc | |
Bosch 600W 75Nm mid-drive | ||
Bosch | ||
Groupset | X01 Eagle, Race Face | |
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 180mm | |
Rear Travel | 170mm | |
Brand Site | ||

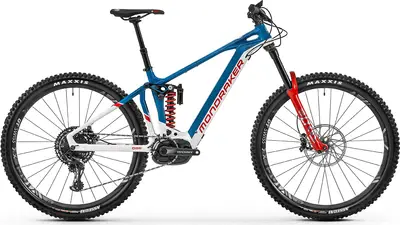

Summary | The Mondraker Level RR is a 29″ aluminum frame full suspension enduro e-bike with ultra high-end components. |
Based on frame geometry and build specs.
Frame | Aluminum | |
---|---|---|
Fork | RockShox Lyrik Ultimate RC2 Charger 2 eMTB, 42mm offset | |
Shock | RockShox Super Deluxe Coil Ultimate RCT, 225x75mm, Trunnion mount | |
Headset | Onoff Saturn, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45° | |
Stem | Onoff Krypton FG 30mm reach, 6061 forged alloy, 35mm clamp | |
Handlebar | Onoff Krypton Carbon 0.5, rise: 12,5mm, width: 780mm, 9° backsweep, 5° upsweep, 35mm clamp | |
Saddle | SDG Fly Mtn, titanium rail, light PU foam | |
Seatpost | Onoff Pija, 337x100mm on S, 387x125mm on M, 425x150mm on L/XL | |
Pedals | N/A | |
Grips | Onoff Desert, 1lock-on, 135mm |
Rear Derailleur | SRAM X01 Eagle 12-speed | |
---|---|---|
Front Derailleur | None | |
Crank | Race Face Aeffect e-Bike, 165mm | |
Shifters | SRAM X01 Eagle 12-speed | |
Cassette | SRAM XG-1275 Eagle, 10-50 tooth, 12-speed | |
Chain | SRAM GX Eagle 12-speed | |
Chain Guide | None | |
Brakes | SRAM Code RSC with CenterLine 200mm six-bolt rotors, metal sintered pads | |
Brake Levers | SRAM Code RSC |
Rims | DT Swiss HX1501 Spline One, 30mm internal width, tubeless ready, 28 spokes | |
---|---|---|
Spokes | DT Swiss Hybrid straight pull | |
Front Hub | DT Swiss 240, 15x100mm front and 12x148mm rear | |
Rear Hub | DT Swiss 240, 15x100mm front and 12x148mm rear | |
Tires | Maxxis Assegai 2.5WT, Tubeless ready, 3C Maxx Grip, DH casing, 60TPI, folding bead front and rear |
Motor | Bosch Performance Line CX Gen4 | |
---|---|---|
Battery | Bosch Powertube |
