MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Mountain Youth | |
Weight | 27.1 lbs | |
Frame | Aluminum | |
| X-Fusion VELVET | ||
Wheels | Aluminum | |
Wheel Size | 24″ | |
| SRAM Level Hydraulic Disc | ||
| SX Eagle | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 100mm | |
Rear Travel | 100mm | |
Brand Site | ||

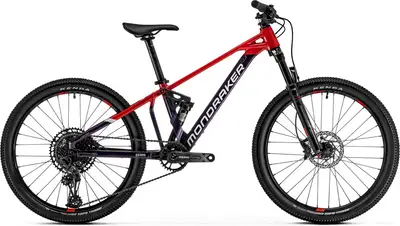

Summary | The Mondraker FACTOR 24 is a 24″ aluminum frame mountain youth bike with upper mid-range components and sram level hydraulic disc brakes. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Factor 24 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 100mm travel, one piece bolt-on upper link, QR 9mm rear axle, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design. 26" wheelset compatible BB Standard: BSA, 73mm, Threaded Color: Deep Purple / Flame Red | |
|---|---|---|
Fork | X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 9x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload Travel: 100mm Spring Type: Air | |
Shock | X-Fusion 02PRO R, 210x47.5mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings Travel: 100mm | |
Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm | |
Headset | ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º | |
Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore | |
Handlebar | SDG Slater, double butted 6061 alloy, rise: 20mm, width: 650mm, 5º backsweep, 8º upsweep, 31.8mm barbore with 4x19mm shims | |
Saddle | SDG Fly JR | |
Seatpost | ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm Type: Rigid | |
Grips | ONOFF Diamond, 1lock-on |
Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 | |
|---|---|---|
Crank | SRAM SX Eagle, DUB axle, Direct mount chain ring, 155mm, Rings: 30T, steel, X-Sync | |
Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1 | |
Chain | SRAM SX Eagle, 12s, Powerlock | |
Brakes | Front: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: SRAM Level Hydraulic Disc | |
Brake Levers | SRAM Level, tooled reach adjust, lever pivot bushings |
Rims | MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes | |
|---|---|---|
Spokes | CN round stainless steel | |
Front Hub | Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts | |
Rear Hub | Formula DC22LW 9x135mm, cup & cone ball bearings, IS 6 bolts | |
Tires | Front: Kenda Booster 24x2.4 single compound 30TPI, wire bead, Rear: Kenda Booster 24x2.4 single compound 30TPI, wire bead |
