Today’s Deals | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro | |
Weight | 32.2 lbs | |
Frame | Aluminum | |
| Fox | ||
| Fox Float DPX2 Performance | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| SRAM G2 RSC Hydraulic Disc | ||
| GX Eagle, Truvativ Descendant | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 170mm | |
Brand Site | ||

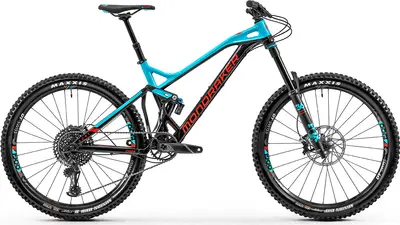

Summary | The Mondraker Dune R is a 27.5″ aluminum frame full suspension enduro bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Aluminum BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | FOX FLOAT FIT GRIP EVOL Performance, 37mm offset Travel: 170mm Spring Type: Air | |
Shock | FOX FLOAT DPX2 LV EVOL Performance, 205x65mm, Trunnion mount Travel: 170mm | |
Bottom Bracket | SRAM DUB 73mm BSA | |
Headset | Onoff Titan with ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45° | |
Stem | Onoff Sulfur FG 30mm reach, 0°, 6061 forged alloy, 31.8 mm clamp | |
Handlebar | OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm clamp | |
Saddle | SDG Fly MTN, Light PU foam, steel rails, Cordura sides | |
Seatpost | Onoff Pija, 337x100mm on S, 387x125mm on M, 425x150mm on L/XL Type: Rigid | |
Pedals | N/A | |
Grips | Onoff Desert, 1lock-on, 135mm |
Rear Derailleur | SRAM GX Eagle 12-speed | |
|---|---|---|
Front Derailleur | None (1x only) | |
Crank | Truvativ Descendant 6K Eagle DUB, 170mm on S/M and 175mm on L/XL | |
Shifters | SRAM GX Eagle 12-speed | |
Cassette | SRAM XG-1275 Eagle, 10-50 tooth, 12-speed | |
Chain | SRAM NX Eagle 12-speed | |
Chain Guide | None | |
Brakes | SRAM G2 RSC with 200mm CenterLine 6-bolt rotors, metallic sintered pads Type: SRAM G2 RSC Hydraulic Disc | |
Brake Levers | SRAM G2 RSC |
Rims | DT Swiss E1900 Spline, 30mm internal width, tubeless ready, 28 holes | |
|---|---|---|
Spokes | DT Swiss Champion straight pull | |
Front Hub | DT Swiss 350, 15x110mm front and 12x148mm rear | |
Rear Hub | DT Swiss 350, 15x110mm front and 12x148mm rear | |
Tires | Maxxis Minion DHF 2.5 WT, tubeless ready, 3C, EXO, Maxx Terra, 60TPI, folding bead front and Maxxis Minion DHR 2.4 WT, tubeless ready, dual compound, EXO, 60TPI, folding bead rear |
