MSRP | ||
|---|---|---|
Where to Buy | ||
Category | Enduro | |
Frame | Aluminum | |
| RockShox Yari RC | ||
| Fox Float DPX2 Performance | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Shimano Hydraulic Disc | ||
| SX Eagle | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 170mm | |
Brand Site | ||

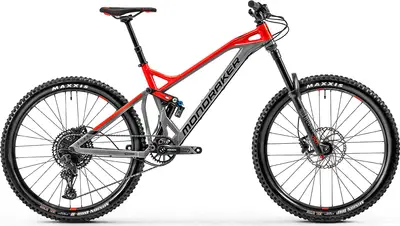

Summary | The Mondraker Dune is a 27.5″ aluminum frame full suspension enduro bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Aluminum BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | RockShox Yari RC Motion Control, DebonAir, 37mm offset Travel: 170mm Spring Type: Air | |
Shock | FOX Float DPX2 LV EVOL Performance, 205x65mm, Trunnion mount Travel: 170mm | |
Bottom Bracket | SRAM DUB BSA | |
Headset | Onoff Saturn with ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45° | |
Stem | Onoff Sulfur FG 30mm reach, 0°, 6061 forged alloy, 31.8 mm clamp | |
Handlebar | OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm clamp | |
Saddle | SDG Fly MTN, PU foam, Cr-Mo rails, Cordura sides | |
Seatpost | Onoff Pija, 337x100mm on S, 387x125mm on M, 425x150mm on L/XL Type: Rigid | |
Pedals | N/A | |
Grips | Onoff Desert, 1lock-on, 135mm |
Rear Derailleur | SRAM SX Eagle, 12-speed | |
|---|---|---|
Front Derailleur | None (1x only) | |
Crank | SRAM SX Eagle DUB, 170mm on S/M and 175mm on L/XL | |
Shifters | SRAM SX Eagle, 12-speed | |
Cassette | SRAM PG-1210 SX Eagle, 11-50 tooth, 12-speed | |
Chain | SRAM SX Eagle, 12-speed | |
Chain Guide | None | |
Brakes | Shimano MT501 with resin pads with 203mm RT66 6-bolt rotors Type: Shimano Hydraulic Disc | |
Brake Levers | Shimano MT501 |
Rims | MDK-EP1 27.5 TLR ASY, asymmetrical, 30mm internal width, tubeless ready, 32 hole | |
|---|---|---|
Spokes | CN round stainless steel | |
Front Hub | MDK DC711 front and DHT rear, Boost, 6-bolt brake tab | |
Rear Hub | MDK DC711 front and DHT rear, Boost, 6-bolt brake tab | |
Tires | Maxxis Minion DHF 2.5WT, tubeless ready, 3C, EXO, Maxx Terra, 60TPI, folding bead front and Maxxis Minion DHR 2.4WT, tubeless ready, dual compound, EXO, 60TPI, folding bead rear |
