Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices
Today’s Deals | Recommended |
|---|
MSRP | $4,200 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro | |
Frame | Aluminum | |
| RockShox Yari RC | ||
| RockShox Monarch R | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| SRAM Level T Hydraulic Disc | ||
| NX | ||
Drivetrain | 1 × 11 | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 160mm | |
Brand Site | ||

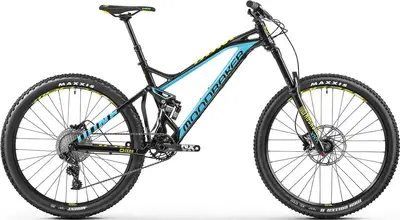

Summary | The Mondraker Dune is a 27.5″ aluminum frame full suspension enduro bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Aluminum BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | RockShox Yari RC, 110x15mm axle, rebound, compression adjustment at low-speed to lock, air preload Travel: 170mm Spring Type: Air | |
Shock | RockShox Monarch Plus R, 215mm x 63.5mm, rebound, air preload Travel: 160mm | |
Bottom Bracket | SRAM GXP XR, sealed bearings, 73mm BSA | |
Headset | Onoff Saturn, tapered, ACB sealed bearings | |
Stem | Onoff Stoic FG, 30mm length, 6061 forged aluminium, 31.8mm clamp | |
Handlebar | Mondraker double butted 6061 aluminum, 25mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp | |
Saddle | SDG Circuit MTN, high-density PU, cordura protection, steel rails | |
Seatpost | Onoff Pija Dropper, S: 337mm length x 100mm travel, M/L/XL: 387mm length x 125mm travel Type: Dropper | |
Pedals | N/A | |
Grips | Onoff Diamond, lock-on, 130mm |
Rear Derailleur | SRAM NX, Type 3, roller bearing clutch, cage lock, 11-speed, long cage, X-Horizon system | |
|---|---|---|
Front Derailleur | N/A | |
Crank | FSA Gamma, aluminum, 170mm length (S/M), 175mm length (L/XL) | |
Shifters | SRAM Trigger NX1, 11-speed, Exact actuation, Zero Loss technology | |
Cassette | Sunrace CSMS7, 11-42 tooth, 11-speed | |
Chain | SRAM PC-1110, 11-speed | |
Chain Guide | N/A | |
Brakes | SRAM Level T, 180mm 6-bolt one-piece rotors, organic pads Type: SRAM Level T Hydraulic Disc | |
Brake Levers | SRAM Level T, length adjust, interchangeable levers, Matchmaker compatible |
Rims | MDK-EP1, 27mm internal width, tubeless ready, 32 hole, asymmetrical | |
|---|---|---|
Spokes | CN round stainless steel | |
Front Hub | Front: MDK DC511, sealed bearings, IS 6-bolt, 110x15mm, Rear: MDK GW, sealed bearings, IS 6-bolt, 142x12mm | |
Rear Hub | Front: MDK DC511, sealed bearings, IS 6-bolt, 110x15mm, Rear: MDK GW, sealed bearings, IS 6-bolt, 142x12mm | |
Tires | Front: Maxxis High Roller II, tubeless ready, dual compound, Exo protection, 60tpi, folding, 27.5" x 2.3", Rear: Maxxis Ardent, single compound, 60tpi, wire bead, 27.5" x 2.4" |
