MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro, E-Bike | |
Weight | 54.2 lbs | |
Frame | Carbon | |
| Fox Performance Float 38 | ||
| Fox Float X Performance | ||
Wheels | Aluminum | |
Wheel Size | 29″ | |
| SRAM DB8 Hydraulic Disc | ||
| Shimano 600W 85Nm mid-drive | ||
| 720Wh | ||
| GX Eagle, NX Eagle | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 160mm | |
Rear Travel | 150mm | |
Brand Site | ||

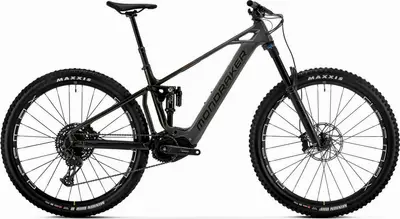

Summary | The Mondraker CRUSHER is a 29″ carbon frame full suspension enduro e-bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. BB Standard: STEPS, Press Fit | |
|---|---|---|
Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload Travel: 160mm Spring Type: Air | |
Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel: 150mm | |
Bottom Bracket | STEPS, press-fit | |
Headset | Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom | |
Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore | |
Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore | |
Saddle | FIZIK Terra Aidon X5 145mm | |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm Type: Dropper | |
Grips | Onoff Desert, 1lock-on, 135mm |
Rear Derailleur | SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 | |
|---|---|---|
Crank | Shimano Steps FC-EM600 ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD | |
Shifters | SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click | |
Chain | SRAM SX Eagle, 12s, Powerlock | |
Brakes | Front: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Type: SRAM DB8 Hydraulic Disc | |
Brake Levers | SRAM DB8, tool reach adjust, lever pivot bushings |
Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes | |
|---|---|---|
Spokes | Mavic J-bend double butted, contactless lacing | |
Front Hub | Mavic, Boost 15x110mm, IS 6 bolts | |
Rear Hub | Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub | |
Tires | Front: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Motor | Shimano STEPS EP801 | |
|---|---|---|
Battery | Simplo internal 720Wh G3 | |
Display | Shimano EN600 |
