MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro, E-Bike | |
Weight | 55.8 lbs | |
Frame | Aluminum | |
| RockShox Psylo | ||
| RockShox Deluxe Select | ||
Wheels | Aluminum | |
Wheel Size | 29″ | |
| SRAM DB8 Hydraulic Disc | ||
| Bosch 600W 85Nm mid-drive | ||
| Bosch 625Wh | ||
| SX Eagle | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 160mm | |
Rear Travel | 150mm | |
Brand Site | ||

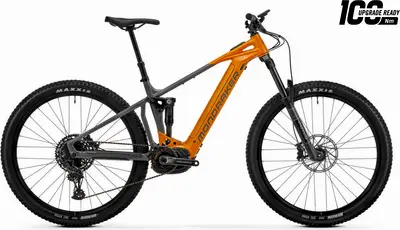

Summary | The Mondraker CHASER is a 29″ aluminum frame full suspension enduro e-bike with upper mid-range components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard Hanger Standard: UDH Colors: Black / Grey; Orange / Grey | |
|---|---|---|
Fork | RockShox Psylo Silver 29, 160mm, Motion control damper, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload Travel: 160mm Spring Type: Air | |
Shock | RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel: 150mm | |
Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º | |
Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore | |
Handlebar | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. | |
Saddle | MDK ebike black | |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) Type: Dropper | |
Grips | Onoff Beehive, 1lock-on, 135mm |
Rear Derailleur | SRAM SX Eagle,12s | |
|---|---|---|
Crank | Race Face Aeffect-R ebike, 160mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD | |
Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click | |
Chain | SRAM SX Eagle, 12s, Powerlock | |
Brakes | Front: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Type: SRAM DB8 Hydraulic Disc | |
Brake Levers | SRAM DB8, tool reach adjust, lever pivot bushings |
Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes | |
|---|---|---|
Spokes | Mavic J-bend double butted, contactless lacing | |
Front Hub | Mavic, Boost 15x110mm, IS 6 bolts | |
Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub | |
Tires | Front: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead, Rear: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
Motor | New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) | |
|---|---|---|
Battery | Bosch Powertube 625Wh | |
Display | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
