    SPEEDER 20D2022 Merida
    Recommended
    MSRP
    ($753)
    Where to Buy
    —
    $1

    At

    Category
    		Fitness
    Weight
    		23.3 lbs
    3.9
    Frame
    		Aluminum
    		Steel
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		Tourney, Acera
    Drivetrain
    		3 × 8
    Brand Site

    merida-bikes.com

    Summary

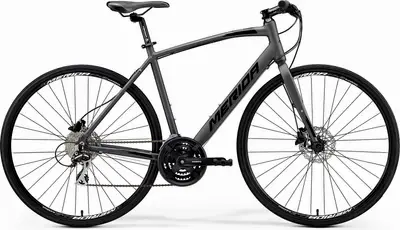

    		The Merida SPEEDER 20D is a 700c aluminum frame fitness bike with mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    38 mph

    SPEEDER 20D

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    SPEEDER 20D2022 Merida
    Frame

    SPEEDER SPEED, material: aluminium, 700x32C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 100mm, Threaded

    Tire Clearance: 32c

    Fork

    Speeder Rigid Steel

    Bottom Bracket

    FSA TH-7420ST-W, Cartridge Bearing

    Headset

    FSA NO.10P

    Stem

    MERIDA Speed, material: aluminium, 31.8mm diameter, 100mm on all sizes

    Handlebar

    MERIDA CC, material: aluminium, 600mm width, Flat

    Saddle

    MERIDA D1-072

    Seatpost

    MERIDA CC, material: aluminium, 27.2mm diameter, 15mm setback

    Type: Rigid

    Pedals

    VP, VPE-891

    Groupset
    Rear Derailleur

    Shimano RD-M360

    Front Derailleur

    Shimano FD-TY710

    Crank

    Shimano TY301, 48-38-28 teeth, 170mm - XXS/SM, 175mm - ML/XXL length crank

    Shifters

    Shimano ST-EF505

    Cassette

    Sunrace CSM668, 11-32 teeth, 8 speed

    Chain

    Sunrace M84

    Brakes

    Shimano BR-MT200, BR-MT200 brake caliper

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BR-MT200

    Wheels
    Rims

    MERIDA CC, 17mm inner width, material: aluminium

    Front Hub

    Shimano TX505, 100x9mm width front hub, 32 spoke holes, centerlock, 135x9mm width rear hub, 32 spoke holes, centerlock

    Rear Hub

    Shimano TX505, 100x9mm width front hub, 32 spoke holes, centerlock, 135x9mm width rear hub, 32 spoke holes, centerlock

    Tires

    Front: MERIDA K1029, 700x30C, wire, Rear: MERIDA K1029, 700x30C, wire

    Disc Rotors

    Shimano RT10, 160 mm
