 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Aero | |
Weight | 16.8 lbs | |
| Aluminum | ||
Fork | Carbon | |
Wheels | Aluminum | |
Wheel Size | 700c | |
Brakes | Rim | |
Groupset | FSA | |
Drivetrain | ||
Brand Site | ||

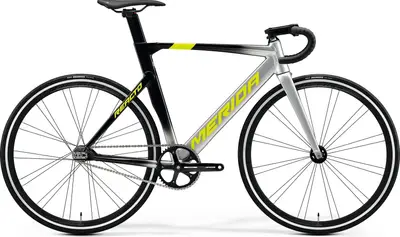

Summary | The Merida REACTO TRACK 500 is an aluminum frame aero bike with modest components and rim brakes. | |
Based on frame geometry and build specs.
relaxedaggressive
smoothrugged
REACTO TRACK 500
Other Aero bikes
Frame | REACTO TRACK, material: aluminium, 700C wheelsize, 100x9/ 130x9mm axle standard, JIS bottom bracket standard BB Standard: BSA, 100mm, Threaded | |
|---|---|---|
Fork | MERIDA REACTO TRACK CF | |
Bottom Bracket | FSA TH-7420ST, Cartridge Bearing | |
Headset | MERIDA M2331 Neck | |
Handlebar | MERIDA EXPERT SL, material: aluminium | |
Saddle | MERIDA COMP SL, V-mount | |
Seatpost | MERIDA COMP CW, material: carbon, Aero shape, 15mm setback |
Crank | FSA Vero Track, 46 teeth, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL | |
|---|---|---|
Cassette | Joytech Singlespeed, 15 teeth | |
Chain | KMC Z610HX | |
Brakes | Rim |
Rims | MERIDA EXPERT CW, 17mm inner width, 35mm height | |
|---|---|---|
Spokes | Double Butted Black stainless | |
Front Hub | Joytech A565SBT, 9x100mm width front hub, 24 spoke holes | |
Rear Hub | Joytech A566SBT, 9x130mm width rear hub, 28 spoke holes | |
Tires | Maxxis Dolomites, 700x23C, fold |
