Bike Comparison
    REACTO DISC 50002020 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Aero
    Weight
    		19.6 lbs
    5.9
    Frame
    		Carbon
    Fork
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		Ultegra, Shimano
    Drivetrain
    		2 × 11
    Brand Site

    merida-bikes.com

    Summary

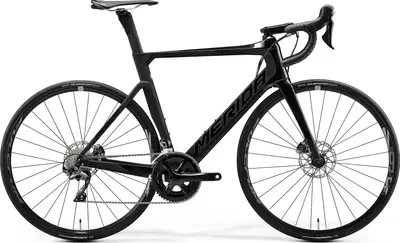

    		The Merida REACTO DISC 5000 is a carbon frame aero bike with high-end components and hydraulic disc brakes.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    REACTO DISC 5000
    Other Aero bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    41 mph

    REACTO DISC 5000

    Highest gear

    (descending)

    Geometry
    Specs
    REACTO DISC 50002020 Merida
    Frame

    REACTO DISC CF2, material: carbon, 700C wheelsize, 100x12/ 142x12mm axle standard, BB386-PF30 bottom bracket standard

    BB Standard: BB30, Press Fit

    Fork

    MERIDA REACTO CF2 disc

    Bottom Bracket

    FSA 386-BB30 PF6000 [SMN FC]

    Headset

    MERIDA REACTO neck

    Handlebar

    MERIDA EXPERT CW, material: aluminium

    Saddle

    MERIDA EXPERT CC

    Seatpost

    MERIDA EXPERT CW, material: carbon, Aero shape, 15mm setback

    Groupset
    Rear Derailleur

    Shimano Ultegra, GS

    Front Derailleur

    Shimano Ultegra

    Crank

    Shimano RS510, 52-36 teeth, 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL

    Shifters

    Shimano Ultegra disc

    Cassette

    Shimano CS-R7000, 11-30 teeth, 11 speed

    Chain

    KMC X11

    Brakes

    Shimano Ultegra, Hydraulic disc

    Brake Levers

    Shimano Ultegra

    Wheels
    Rims

    Fulcrum Racing 900 DB, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 22mm height, Centerlock

    Tires

    Continental Grand Sport Race, 700x25C, fold
