Bike Comparison

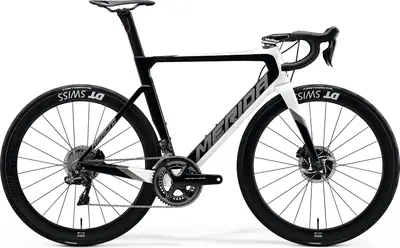

    REACTO DISC 10K-E2020 Merida
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Aero
    Weight
    		16.1 lbs
    8.8
    Frame
    		Carbon
    Fork
    		Carbon
    Wheels
    		Carbon
    Wheel Size
    		700c
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		Dura-Ace Di2
    Drivetrain
    		2 × 11 Electronic
    Brand Site

    merida-bikes.com

    Summary
    		The Merida REACTO DISC 10K-E is a carbon frame aero bike with ultra high-end components and hydraulic disc brakes.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    REACTO DISC 10K-E
    Other Aero bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    41 mph

    REACTO DISC 10K-E

    Highest gear

    (descending)

    Geometry
    Specs
    REACTO DISC 10K-E2020 Merida
    Frame

    REACTO DISC CF4, material: carbon, 700C wheelsize, 100x12/ 142x12mm axle standard, BB386-PF30 bottom bracket standard

    BB Standard: BB30, Press Fit

    Fork

    MERIDA REACTO CF4 disc

    Bottom Bracket

    FSA 386-BB30 PF6000 [SMN FC]

    Headset

    FSA REACTO CF neck

    Handlebar

    Vision Metron 6D, material: carbon

    Saddle

    Prologo NAGO C3

    Seatpost

    MERIDA TEAM CW, material: carbon, Aero shape, 15mm setback

    Groupset
    Rear Derailleur

    Shimano Dura Ace Di2, SS

    Front Derailleur

    Shimano Dura Ace Di2

    Crank

    Shimano Dura Ace, 52-36 teeth, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL

    Shifters

    Shimano Dura Ace disc Di2

    Cassette

    Shimano CS-9100, 11-30 teeth, 11 speed

    Chain

    Shimano CN-HG901-11

    Brakes

    Shimano Dura Ace, Hydraulic disc

    Brake Levers

    Shimano Dura Ace disc

    Wheels
    Rims

    DT Swiss ARC 1400 Dicut DB 48, 100x12mm width front hub, 142x12mm width rear hub, 18mm inner width, 48mm height, Centerlock

    Tires

    Continental Grand Prix 5000, 700x25C, fold
