MSRP | ($9,389) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Aero | |
Weight | 17.5 lbs | |
Frame | Carbon | |
| Carbon | ||
Wheels | Carbon | |
Wheel Size | 700c | |
Clearance | 30c | |
| SRAM Force Hydraulic Disc | ||
| Force, Force eTap | ||
Drivetrain | 2 × 12 Electronic | |
Power Meter | Force AXS | |
Brand Site | ||

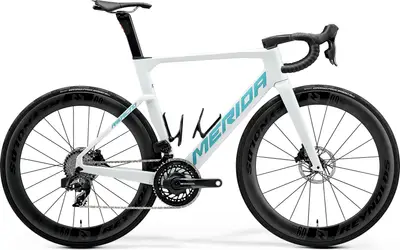

Summary | The Merida REACTO 9000 is a carbon frame aero bike with high-end components and sram force hydraulic disc brakes. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | REACTO CF5 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12 mm axle standard, BB86,5 bottom bracket standard BB Standard: BB86/BB92, 86mm, Press Fit Tire Clearance: 30c | |
|---|---|---|
Fork | REACTO CF5 IV disc, material: carbon, 700x30C max. wheelsize | |
Bottom Bracket | SRAM Force, SRAM DUB PF ROAD | |
Headset | MERIDA TEAM SL, VP-MRBHB (OP-203 neck) | |
Stem | TEAM ONE-PIECE INTEGRATED, material: carbon, 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL | |
Handlebar | TEAM SL 1P INTEGRATED, material: carbon, 400 mm (XXS-XS), 420 mm (S-M-L), 440 (XL) | |
Saddle | Prologo Scratch M5, V-mount adapter, incl. MERIDA minitool | |
Seatpost | MERIDA TEAM CW, Aero shape, 15 mm setback, material: Carbon Type: Rigid |
Rear Derailleur | SRAM Force AXS | |
|---|---|---|
Front Derailleur | SRAM Force AXS | |
Crank | SRAM Force AXS, 50-37 teeth, Power Meter, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL | |
Power Meter | SRAM Force AXS, 50-37 teeth, Power Meter, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL | |
Shifters | SRAM FORCE AXS | |
Cassette | SRAM CS XG 1270 D1, 10-36 teeth, 12 speed | |
Brakes | SRAM Force AXS, Hydraulic disc Type: SRAM Force Hydraulic Disc | |
Brake Levers | SRAM Force AXS |
Rims | Reynolds BL60 Pro, 100x12 mm width front hub | |
|---|---|---|
Front Hub | MERIDA EXPERT SL, including removable lever, 6/4 mm allen key | |
Rear Hub | MERIDA EXPERT SL, including removable lever, 6/4 mm allen key | |
Tires | Front: Continental Grand Prix 5000S TR, 700x25C, fold, tubeless ready, Rear: Continental Grand Prix 5000S TR, 700x25C, fold, tubeless ready | |
Disc Rotors | SRAM Paceline, 160 mm |
Lights | REACTO light seat post USB |
|---|
