Recommended |
---|
MSRP | ||
---|---|---|
Where to Buy | — $1 At | |
Category | Aero | |
Weight | 18.7 lbs | |
Carbon | ||
Fork | Carbon | |
Wheels | Aluminum | |
Wheel Size | 700c | |
Brakes | Rim | |
Groupset | 105 | |
Drivetrain | 2 × 11 | |
Brand Site | ||

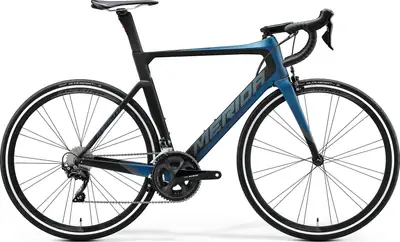

Summary | The Merida REACTO 4000 is a carbon frame aero bike with upper mid-range components and rim brakes. |
Based on frame geometry and build specs.
Frame | REACTO CF2, material: carbon, 700C wheelsize, 100x9/ 130x9mm axle standard, BB386-PF30 bottom bracket standard BB Standard: BB30, Press Fit | |
---|---|---|
Fork | MERIDA REACTO CF2 | |
Bottom Bracket | FSA 386-BB30 PF6000 [SMN FC] | |
Headset | MERIDA REACTO neck | |
Handlebar | MERIDA EXPERT CW, material: aluminium | |
Saddle | MERIDA EXPERT CC | |
Seatpost | MERIDA EXPERT CW, material: carbon, Aero shape, 15mm setback |
Rear Derailleur | Shimano 105, GS | |
---|---|---|
Front Derailleur | Shimano 105 | |
Crank | Shimano 105, 52-36 teeth, 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL | |
Shifters | Shimano 105 | |
Cassette | Shimano CS-R7000, 11-30 teeth, 11 speed | |
Chain | KMC X11 | |
Brakes | Shimano 105-direct | |
Brake Levers | Shimano 105 |
Rims | MERIDA EXPERT CW, 17mm inner width, 35mm height | |
---|---|---|
Spokes | Double Butted Black stainless | |
Front Hub | Road seal bearing, 100x9mm width front hub, 24 spoke holes | |
Rear Hub | Road seal bearing, 130x9mm width rear hub, 28 spoke holes | |
Tires | Continental Ultra Sport II, 700x25C, fold |
