Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices
Today’s Deals | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Weight | 30.6 lbs | |
Frame | ||
| RockShox Revelation RC | ||
| Fox | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ / 29″ | |
| Shimano Deore Hydraulic Disc | ||
| XT | ||
Drivetrain | 2 × 11 | |
Suspension | Full | |
Front Travel | 130mm | |
Rear Travel | - | |
Brand Site | ||

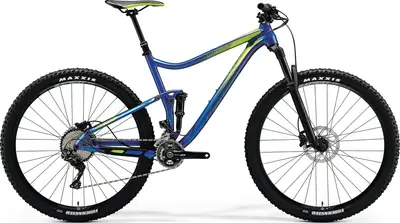

Summary | The Merida ONE-TWENTY XT-EDITION is a 27.5″ / 29″ full suspension trail bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | ONE-TWENTY LITE BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Rock Shox Revelation RC air fork with tapered steered, 130mm travel and 15mm bolt through axle, Boost Travel: 130mm Spring Type: Air | |
Shock | Fox Performance Float | |
Bottom Bracket | BSA, 73mm, threaded | |
Headset | MERIDA M2339 | |
Handlebar | MERIDA Expert CC 740mm wide 10mm rise | |
Saddle | MERIDA Sport | |
Seatpost | MERIDA Expert Dropper 31.6mm Type: Dropper | |
Pedals | Not included |
Rear Derailleur | Shimano XT Shadow+ | |
|---|---|---|
Front Derailleur | Shimano XT | |
Crank | Shimano XT 36-26 teeth | |
Shifters | Shimano XT 22 speed rapid fire shifters | |
Cassette | Shimano M7000, 11 speed, 11-42 | |
Chain | KMC X11-1 | |
Brakes | Shimano M500 hydraulic disc, 180mm rotors Type: Shimano Deore Hydraulic Disc | |
Brake Levers | Shimano M500 |
Rims | MERIDA Expert CC, 22.5mm inner width, tubeless ready | |
|---|---|---|
Spokes | Double Butted Black stainless | |
Front Hub | Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock | |
Rear Hub | Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock | |
Tires | Maxxis Forekaster 2.35" folding |
