Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Today’s Deals
Bike Comparison

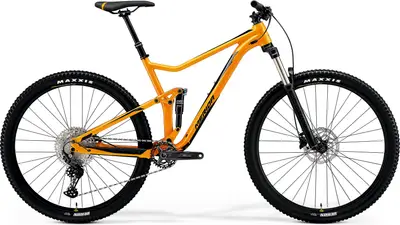

    ONE-TWENTY 4002024 Merida
    Recommended
    MSRP
    ($1,902)
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    4.6
    Frame
    		Aluminum
    		Suntour XCR Air
    		Suntour
    Wheels
    		Aluminum
    Wheel Size
    		27.5″ / 29″
    		Tektro Hydraulic Disc
    		Deore
    Drivetrain
    		1 × 11
    Suspension
    		Full
    Front Travel
    		130mm
    Rear Travel
    		120mm
    Brand Site

    merida-bikes.com

    Summary
    		The Merida ONE-TWENTY 400 is a 27.5″ / 29″ aluminum frame full suspension trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    ONE-TWENTY 400
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    ONE-TWENTY 400

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    ONE-TWENTY 4002024 Merida
    Frame

    ONE-TWENTY LITE, 120mm suspension travel, material: aluminium, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard

    BB Standard: BB86/BB92, Press Fit

    Fork

    SR Suntour XCR34 LOR, Air, 130mm suspension travel, Tapered, lockout, 51mm fork offset

    Travel: 130mm

    Spring Type: Air

    Shock

    SR Suntour Unair TR LOR8, lockout

    Travel: 120mm

    Bottom Bracket

    BB86/BB92, press-fit

    Headset

    FSA NO.47/50

    Handlebar

    MERIDA EXPERT CC, material: aluminium, 740mm width, 10mm rise

    Saddle

    MERIDA COMP SL, V-mount

    Seatpost

    MERIDA COMP TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M: 125mm travel seatpost - L/XL: 150mm travel seatpost

    Type: Dropper

    Groupset
    Rear Derailleur

    Shimano Deore M5100 Shadow+, SGS

    Crank

    Shimano Deore M5100, 32 teeth, 170 mm-S, 175 mm-M up

    Shifters

    Shimano SL -MT500-L

    Cassette

    Shimano Deore M5100, 11-51 teeth, 11 speed

    Chain

    KMC X11

    Brakes

    Tektro M275, 2 piston

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP CC, 20mm inner width, material: aluminium

    Spokes

    Black stainless

    Front Hub

    Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano MT400-B, 148x12mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Maxxis Rekon, 29x2.4", wire

    Disc Rotors

    Shimano RT10, 180 mm
