    ONE-TWENTY 3002024 Merida
    Recommended
    MSRP
    ($2,549)
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    Weight
    		34.6 lbs
    4.5
    Frame
    		Aluminum
    		Suntour XCR Air
    		Suntour
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Full
    Front Travel
    		130mm
    Rear Travel
    		130mm
    Brand Site

    merida-bikes.com

    Summary

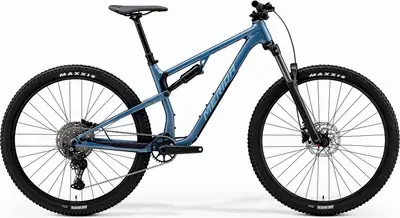

    		The Merida ONE-TWENTY 300 is a 29″ aluminum frame full suspension trail bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    ONE-TWENTY 300
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    ONE-TWENTY 300

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    ONE-TWENTY 3002024 Merida
    Frame

    ONE-TWENTY LITE V, 130 mm suspension travel, material: aluminium, 29x2.5" max. wheelsize, 148x12 mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 73mm, Threaded

    Fork

    Suntour XCR34 2CR, Air, 130 mm suspension travel, Tapered, lockout, 44 mm fork offset, 29x2.4" max. wheelsize

    Travel: 130mm

    Spring Type: Air

    Shock

    SR Suntour Edge Plus 2CR, lockout

    Travel: 130mm

    Bottom Bracket

    BSA, 73mm, threaded

    Headset

    Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing

    Stem

    MERIDA EXPERT TR, material: aluminium, 35 mm diameter, 0° stem angle, 40 mm

    Handlebar

    MERIDA COMP TR, material: aluminium, 780 mm width, 20 mm rise

    Saddle

    MERIDA COMP SL, V-mount

    Seatpost

    MERIDA EXPERT TR II, Diameter: 34.9 mm, Setback: 0 mm, Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG

    Type: Dropper

    Groupset
    Rear Derailleur

    Shimano CUES U6000, GS

    Crank

    MERIDA Expert TR, 32 teeth, 170 mm on all sizes

    Shifters

    Shimano SL-MT500-L / Shimano CUES U6000

    Cassette

    Shimano CUES LG400, 11-48 teeth, 10 speed

    Chain

    Shimano LG500

    Brakes

    Shimano MT200, 2 piston

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    MERIDA COMP CC II, 25 mm inner width, material: aluminium, tubeless ready

    Spokes

    Black stainless

    Front Hub

    Shimano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Rear Hub

    Shimano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub, 32 spoke holes, Centerlock, 148x12 mm width rear hub, 32 spoke holes, Centerlock

    Tires

    Front: Maxxis Rekon, 29x2.4", wire, Rear: Maxxis Rekon, 29x2.4", wire

    Disc Rotors

    Shimano RT10, 180 mm
