    ONE-SIXTY FR 8002025 Merida
    Recommended
    MSRP
    ($4,895)
    Where to Buy
    —
    $1

    At

    Category
    		Enduro
    Weight
    		39.2 lbs
    5.4
    Frame
    		Aluminum
    		DVO Onyx SC
    		DVO Jade X
    Wheels
    		Aluminum
    Wheel Size
    		29″ / 27.5″
    		TRP Trail EVO Hydraulic Disc
    		Deore
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		180mm
    Rear Travel
    		171mm
    Brand Site

    merida-bikes.com

    Summary

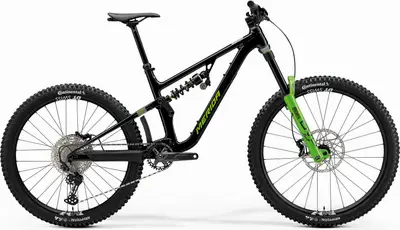

    		The Merida ONE-SIXTY FR 800 is a 29″ / 27.5″ aluminum frame full suspension enduro bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    ONE-SIXTY FR 800
    Other Enduro bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    26 mph

    ONE-SIXTY FR 800

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    ONE-SIXTY FR 8002025 Merida
    Frame

    ONE-SIXTY LITE III, 171mm suspension travel mullet, material: aluminium, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

    BB Standard: BSA, 73mm, Threaded

    Fork

    DVO Onyx 38 D2, Air, 180mm suspension travel, tapered, 44mm Offset, 29"

    Travel: 180mm

    Spring Type: Air

    Shock

    DVO Jade X D2, coil, spring rate per size XSHORT and SHORT 300 lbs, MID: 350 lbs, LONG: 400 lbs, XLONG: 450 lbs

    Travel: 171mm

    Bottom Bracket

    Shimano BB-MT-501, 24mm

    Headset

    Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing

    Stem

    MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, 40 mm

    Handlebar

    MERIDA EXPERT TR II, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise

    Saddle

    MERIDA COMP SL, 25% recycled material, V-mount

    Seatpost

    MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, all sizes 30-230mm travel seatpost

    Type: Dropper

    Groupset
    Rear Derailleur

    Shimano Deore M6100, SGS

    Crank

    Shimano Deore MT512, 32 teeth, 170 mm for all sizes

    Shifters

    Shimano SL-MT500-IL / Shimano Deore M6100

    Cassette

    Shimano Deore M6100, 10-51 teeth, 12 speed

    Chain

    KMC X12

    Chain Guide

    MERIDA EXPERT TR ISCG05

    Brakes

    TRP Trail Evo HD-M843, 4 piston

    Type: TRP Trail EVO Hydraulic Disc

    Wheels
    Rims

    DT Swiss F1900, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves included), front 29", rear 27.5"

    Spokes

    Double Butted Black stainless

    Front Hub

    MERIDA COMP TR, including removeable lever, 6/4mm allen key

    Rear Hub

    MERIDA COMP TR, including removeable lever, 6/4mm allen key

    Tires

    Front: Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Soft Compund, Rear: Continental Kryptotal-R, 27.5x2.4", fold, TR, Downhill Casing, Soft Compound

    Disc Rotors

    TRP RS01E, 220mm, 203mm
